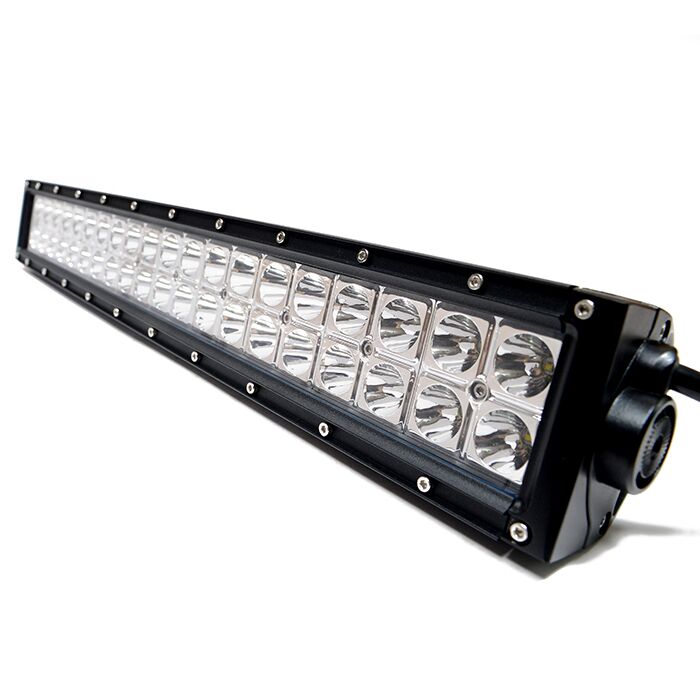

TOTRON 20″ DC Series LED Light Bar – TLB3120



Add Plug-and-Play Wiring Harness w/Switch? *

Search Part # THS311D16 for more information.

Product Description

Popular – TOTRON’s TLB3120 DC Series 20 inch dual row LED light bar is the most popular size we offer due ease of fitment on most cars, trucks and SUV’s.


Powerful – Producing an astounding 9,000+ lumens, you will have no trouble seeing what is ahead of you. Crisp and clear pure white 5000k CREE LED chips produce a retina burning amount of light, sure to brighten your path. We have customers installing these with a perfect fitment behind grilles and bumpers as well as tractors and trailers; the options are endless.


Options – Offered in 3 patterns: spot, flood and combo.  Spot sends light straight ahead in a concentrated area whereas flood sends light to the sides as well as ahead, just not as concentrated in one area as you would find in our spot beam.  In our combination beam pattern, the outer most LED’s are flood beam and inner most LED’s are spot.


Quality – Compared side by side with a Rigid E Series, these light bars have the same high quality build, higher total wattage and lumen output at a significantly reduced cost. Also offered in a 20″ Dual Row Curved LED Light Bar by TOTRON.


Trusted – For over a decade, HID Kit Pros in Issaquah, Washington has been providing customers with the best quality automotive lighting and accessories while backing it up with unbeatable customer service. Every employee at HKP has been trained on our wide selection of products to help suit each and every customers needs. Local? Stop by our showroom and installation center, test out our products in person with our state of the art testing equipment. Have a question? Contact us.


Read more about the TLB3120 TOTRON 20″ LED Light Bar



Output Power (wattage): 120W

Input Voltage: DC 10 – 30V

Lumens: 9,600


  • Brand – CREE
  • Wattage – 3W Per Chip
  • Quantity – 40x Chips

Waterproof Rate: IP 67

Current Draw (amperage):

  • 8.60A @ 12V
  • 4.30A @ 24V

Housing: Die-Cast Aluminum

Lens: Polycarbonate (covers found here)

Mounting Brackets: 304 Stainless Steel (included)

Certifications: CE, RoHS and EMC Certified

Beam Pattern (read more here):

  • Flood Beam – 90 Degree Angle
  • Spot Beam – 8 Degree Angle
  • Combo – Spot and Flood

Dimensions: Detailed specs found here

Sold: Individually


22 Inch 120 Watt CREE LED Off Road Light Bar Dimensions

Additional Information

Weight 8.00 lbs
Shipping Dimensions 27 x 6 x 6 in

Ships Same Day





Beam Pattern

Combo (Spot/Flood), Flood, Spot

LED Chip


Output Color

Pure White


1 Year


Dual Row

Why HID Kit Pros?

All of our LED work lights and light bars have gone through years of extensive research and testing and are an HID Kit Pros exclusive using the best materials available, giving you the best quality lighting there is.

See more on how our LED lighting differs from the rest here

-Shatterproof Polycarbonate Lens

-IP68 Waterproof Rating

-Variable Voltage: 10 – 30V

-Genuine CREE LED Chips Inside

-PWM Thermal Heat Management Regulation

-Instant On/Off: No Warm Up Time
