Product Description

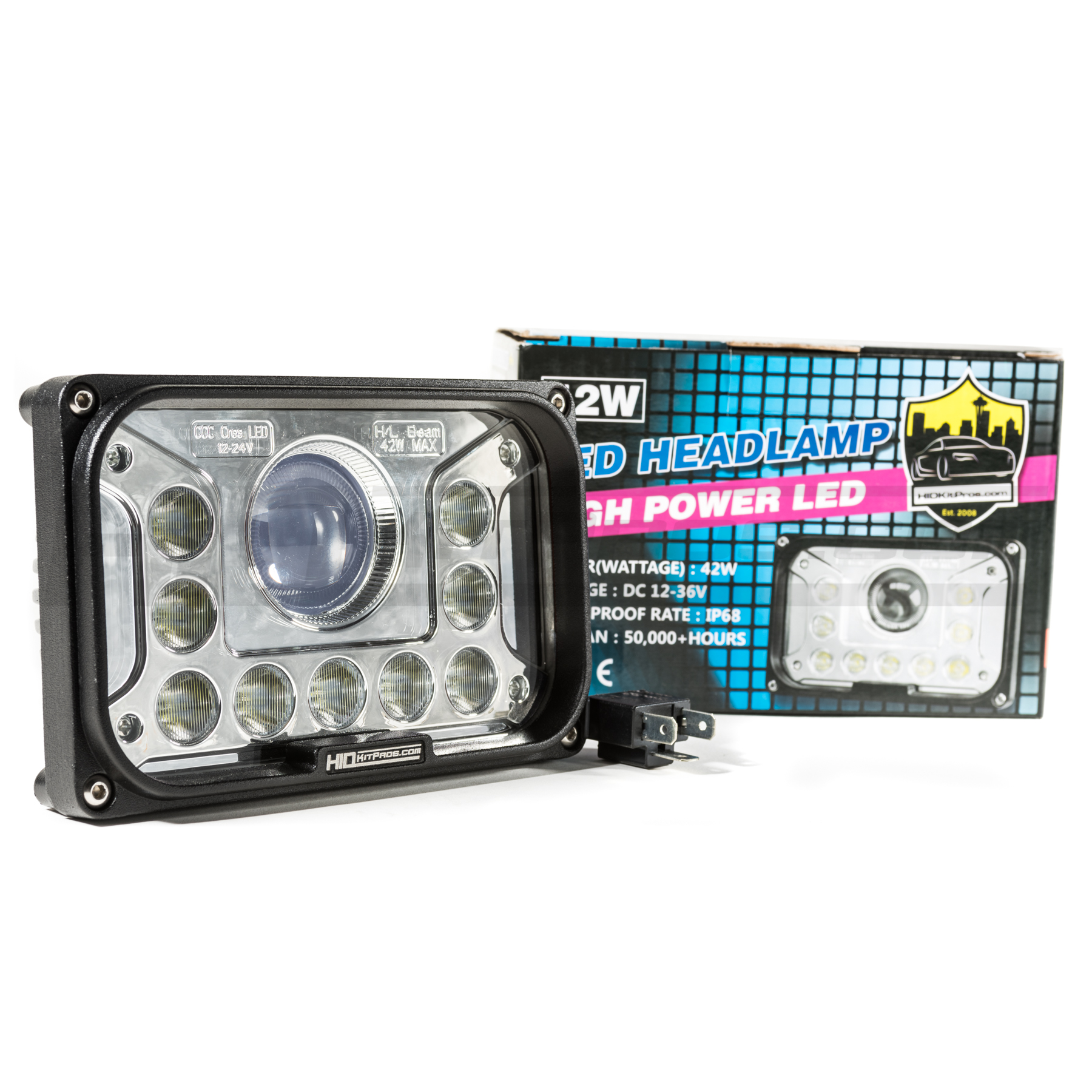

Upgrade – Replace your dull, sealed beam headlights with the revolutionary 45 watt LED headlight replacements from HKP™. The state of the art housings feature high and low beam functionality which means they have the industry standard 3 prong H4/9003 plug on them; ground, low beam power and high beam power. With over 10,000 units sold since their release in 2016 alone, you will wish you had upgraded sooner!

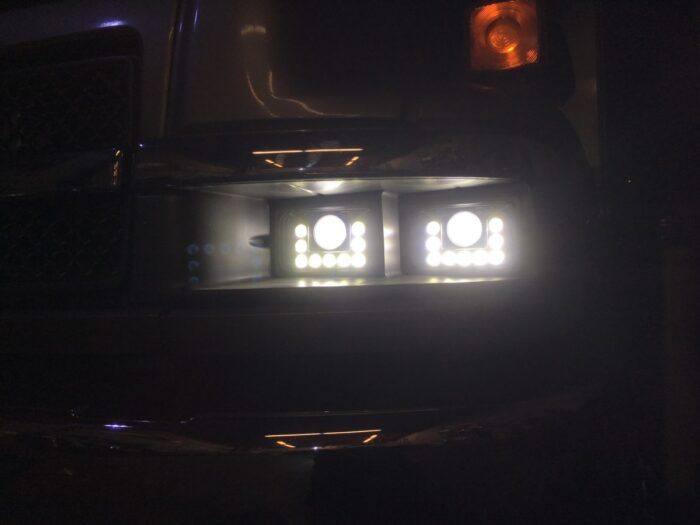

Well-Built – They can be hooked up as a high and low switching, low beam only or high beam only. This one headlamp can replace dozens of factory part numbers whether just a low beam or just a high beam or even switching, they are universal to the fitments listed below. These units have no physical filament which deem them perfect for off-road vehicles, dump trucks, semi-trucks and more! Built to take a beating, these headlights are by far one of the easiest and most cost effective ways to upgrade your lighting system today.

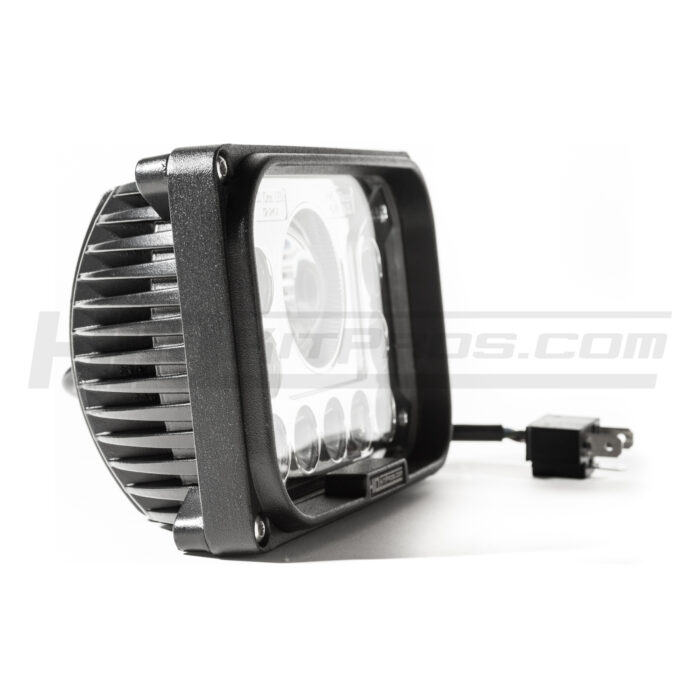

Optics – Crystal clear projector optics create a beam pattern of light where it is most useful to the driver, not into the eyes of oncoming traffic. With proper alignment and height adjustment after installation, the 4×6 Bi-LED headlamps meet and exceed department of transportation requirements.
Installation – Direct bolt-on replacement for the stock unit; requires no modification for most applications – 100% plug-and-play H4/9003 industry standard plug. Note: these do not include mounts for auxiliary lighting, they are intended for headlamp replacements where mounts are not needed. If you’d like to add a mount and hardware, simply click the drop down above and add the necessary hardware.
Trusted – For over a decade, HID Kit Pros in Bellevue, Washington has been providing customers with the best quality automotive lighting and accessories while backing it up with unbeatable customer service. Every employee at HKP has been trained on our wide selection of products to help suit each and every customers needs. Local? Stop by our showroom and installation center, test out our products in person with our state of the art testing equipment. Have a question? Contact us.
Specifications –
Wattage Output: 45W
Input Voltage: DC 12 – 24V
Color Temperature: 5,500K – Pure White

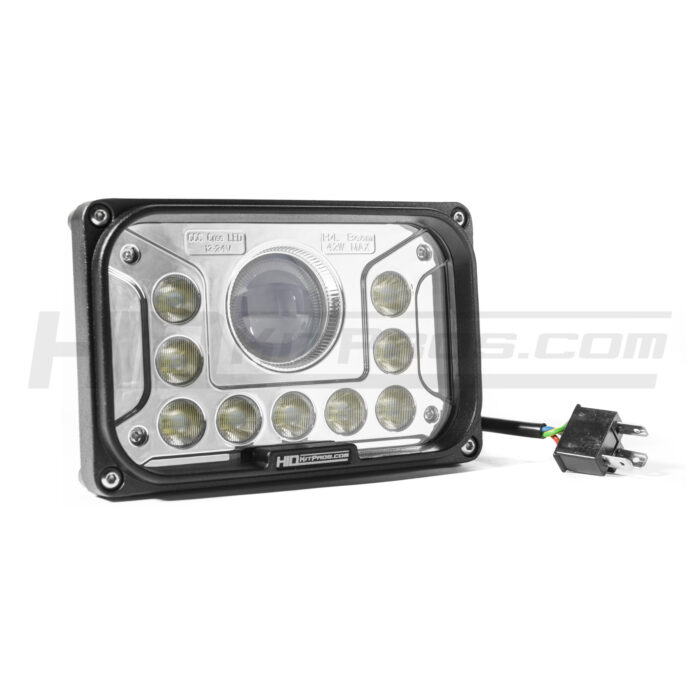

LED:
- 9x 3W CREE (surrounding)
- 1x 15W CREE (projector)
Lumens:
- 2,000 – Low Beam (stock halogen bulb is 700)
- 3,400 – High Beam (stock halogen bulb is 900)
Waterproof Rate: IP 68
Current Draw (amperage):
-
3.75A @ 12V
-
1.88A @ 24V

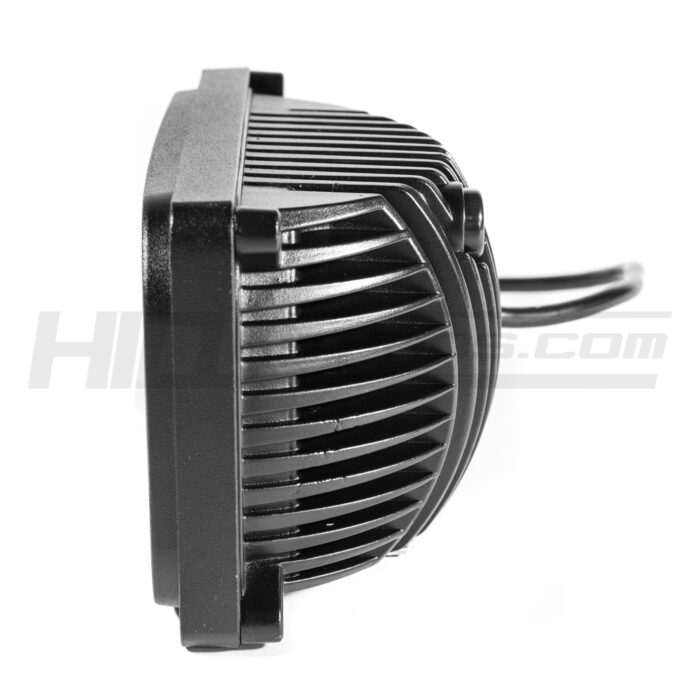

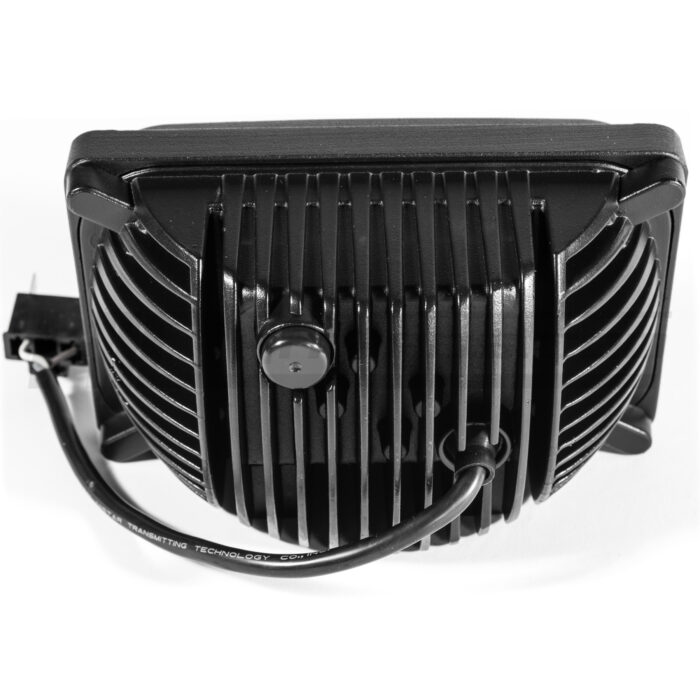

Housing: Die-Cast Aluminum
Lens: Polycarbonate
Housing Color: Black
Warranty: 2 Years
Certifications: CE, RoHS and EMC Certified
Beam Pattern: Flood (headlight) Beam 60 Degree
Replaces: H4/9003, H4651, H4651ST, H4651XV, 4652, H4656, H4656ST, H4656XV, H4666, H4668, H6545, H6545BL, HP6545
Wire Configuration:
- Green = Ground/Negative
- Red = Low Beam Power
- Blue = High Beam Power
Sold: Individually
kevsorenson88@outlook.com:

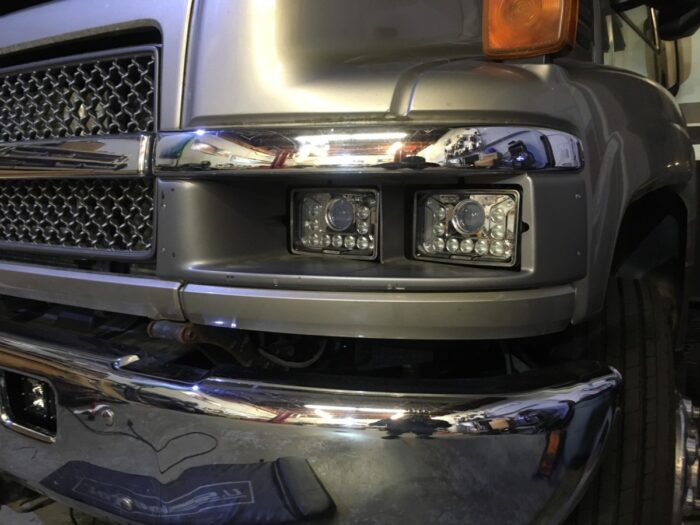

Been running the standard 4x6 on our fire trucks and when we saw these come out and they had more lumens, we decided to try these and they are just as great but evne brighter which is a huge plus, we put them throuhg the ringer from extreme heat to extreme cold and flashing/strobing all the time.
kbuckner1987@gmail.com:
I was skeptical at first beceause they are so much cheaper than say JW speaker but I gave these a try after a friend told me about them. WOW! Great quality - very well made and fit perfectly in the buckets of our dump trucks.
