Product Description

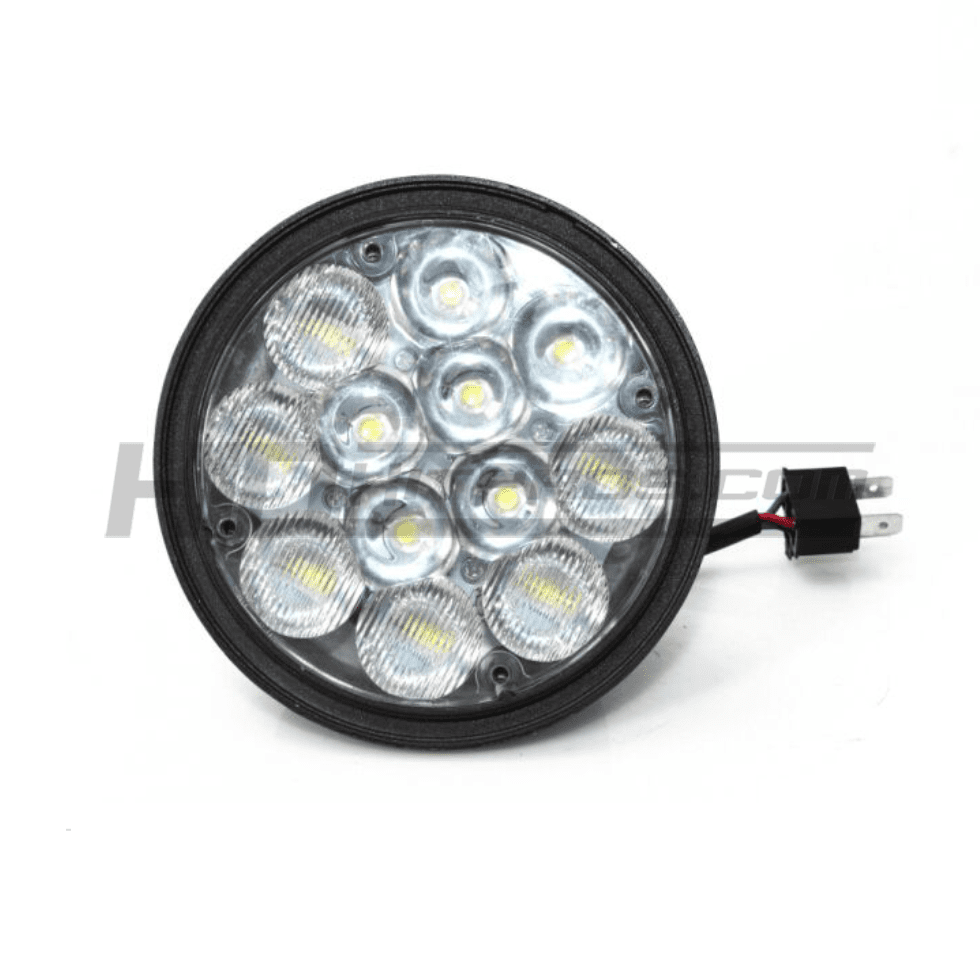

Modern – Vibration? No problem. Heat? Virtually none given off. High power draw? Yea right! Replace your 5 inch round sealed beams with the HKP™ revolutionary LED headlights with these 36 watt LED headlight replacements.
Bolt On – Direct bolt in to your factory sealed beam location, direct replacement to your 5-3/4″ factory round sealed beam headlamp. Due to variations from vehicle to vehicle, some may require modification i.e. headlamp bucket/wire configuration. Each headlamp assembly uses an industry standard H4 3 prong socket plug which can easily be configured in the even that power/ground wires need to be swapped to fit your specific application.
Unique – Add the sleek and modern look of LED to your classic car or truck today with the lighting system of the future. Projection optics provide crisp and clean cut-off to prevent glare toward oncoming drivers and focus light on the road, right where you want it.
Versatile – The housings have high and low functionality which means they have the 3 prongs on them; ground, low beam power and high beam power. They can be hooked up as a high and low switching, low beam only or high beam only. With hundreds of fire departments, government trucks, semi trucks and more upgrading, you will wish you had done it sooner.
Trusted – For over a decade, HID Kit Pros in Bellevue, Washington has been providing customers with the best quality automotive lighting and accessories while backing it up with unbeatable customer service. Every employee at HKP has been trained on our wide selection of products to help suit each and every customers needs. Local? Stop by our showroom and installation center, test out our products in person with our state of the art testing equipment. Have a question? Contact us.
Power Output (wattage): 36W
Input Voltage: DC 10 – 30V
Lumens:
- Low Beam – 2,520 (stock ~ 700)
- High Beam – 3,900 (stock ~ 900)
Color: Pure White
Waterproof Rate: IP 68
Current Draw (amperage):
-
3.00A @ 12V
-
1.50A @ 24V
Housing: 304 Die-Cast Aluminum
Lens: Polycarbonate
Warranty: 2 Years
Light Configuration (see sub photos above):
- Low Beam – Horseshoe
- High Beam – All on
Certifications: CE, RoHS and EMC Certified
Replaces: 4000, 4040, 5001, 5506, H5001, 5009, H5006, H5006LL, H5009, H5001XV
Dimensions:
- 5-3/4 in. tall
- 5-3/4 in. wide
- 3-1/2 in. deep
Wire Configuration:
- Green = Ground/Negative
- Red = Low Beam Power
- Blue = High Beam Power
Sold: Individually
