Product Description
Overview. Introducing the SS3 Fog Light Kit for your Mercedes-Benz Sprinter! Featuring higher output intensity than any other 3” light on the market, the LED pods in this kit have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the custom 3D-printed brackets, this SS3 Fog Kit has a clean, factory-style appearance, only much brighter!

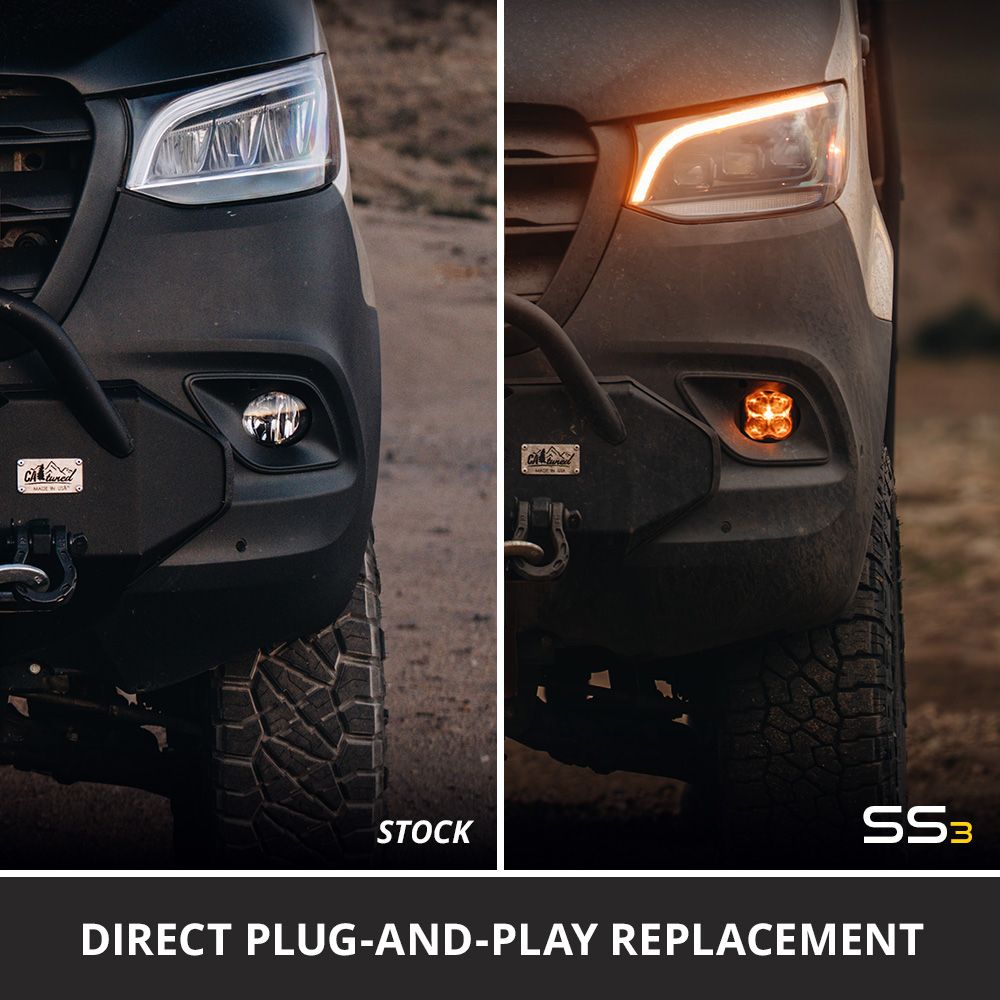

Plug and Play. Thanks to 3D-printed brackets, the SS3 Fog Light Bracket Kit can be installed on your Mercedes-Benz Sprinter in minutes. Simply remove your factory fog light assembly, and ours will bolt right into its place! Wire adapters are included to connect the lights to your factory bulb sockets, as well as an optional harness to connect directly to your Sprinter’s fuse box to power the backlight!
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.
SAE Compliant. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.
SAE Driving is designed to supplement your high beams, but it’s great for general illumination as well. Rather than a traditional “spot” pattern, the Stage Series Driving pattern shines in an 18×8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds.

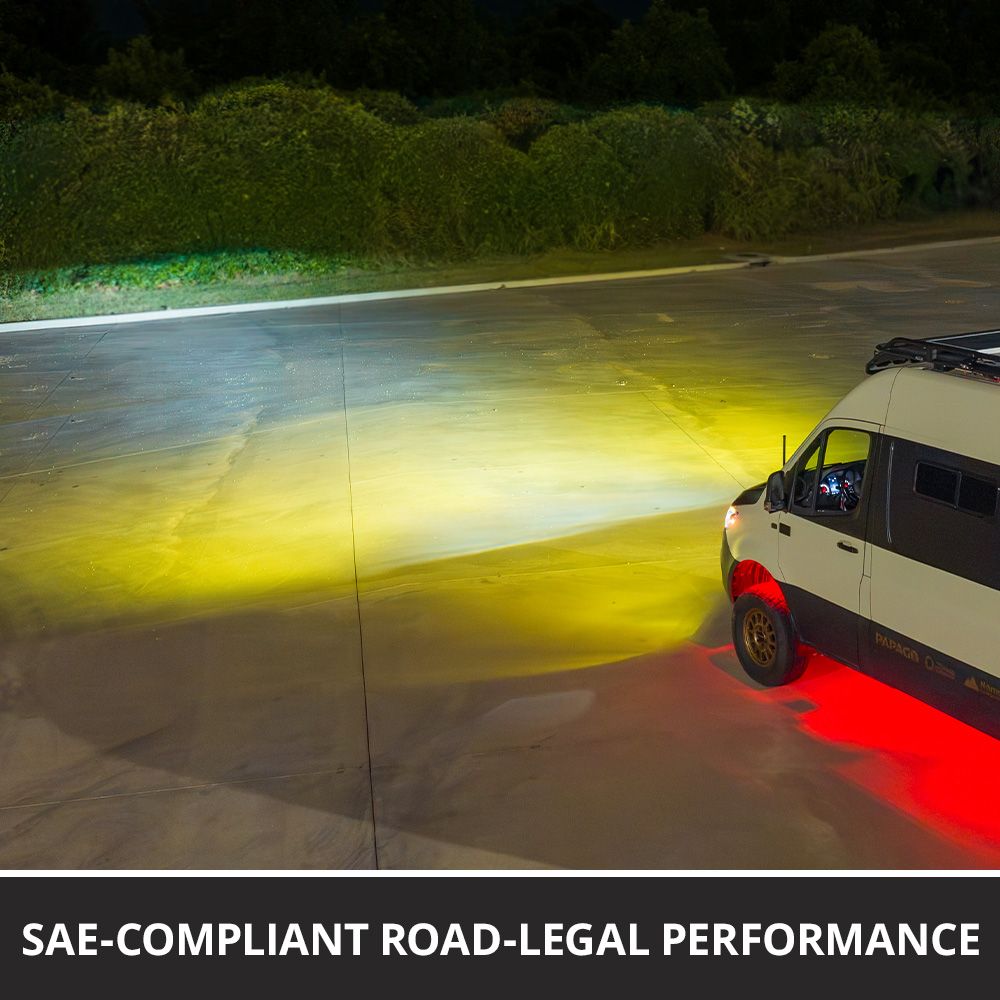

SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.
When installed as a pair and aimed in accordance with your state’s regulations, the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light, and the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

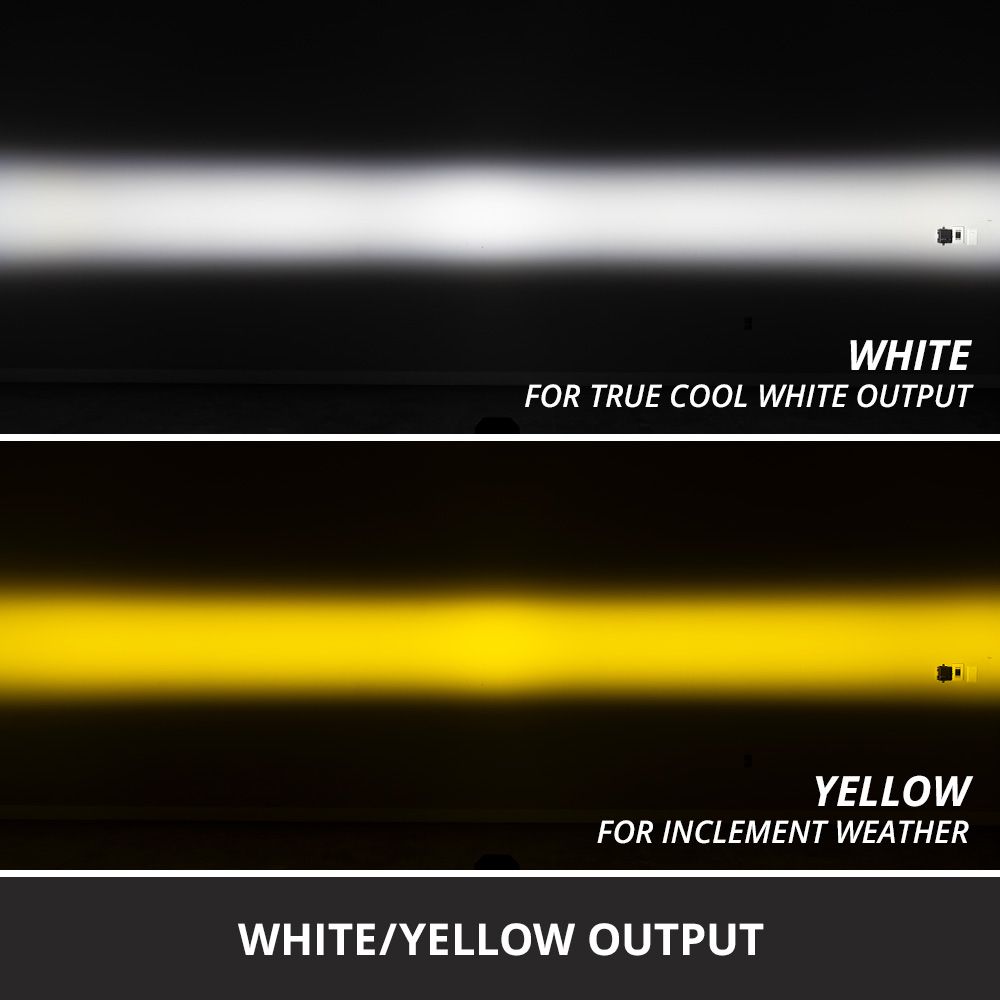

White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.

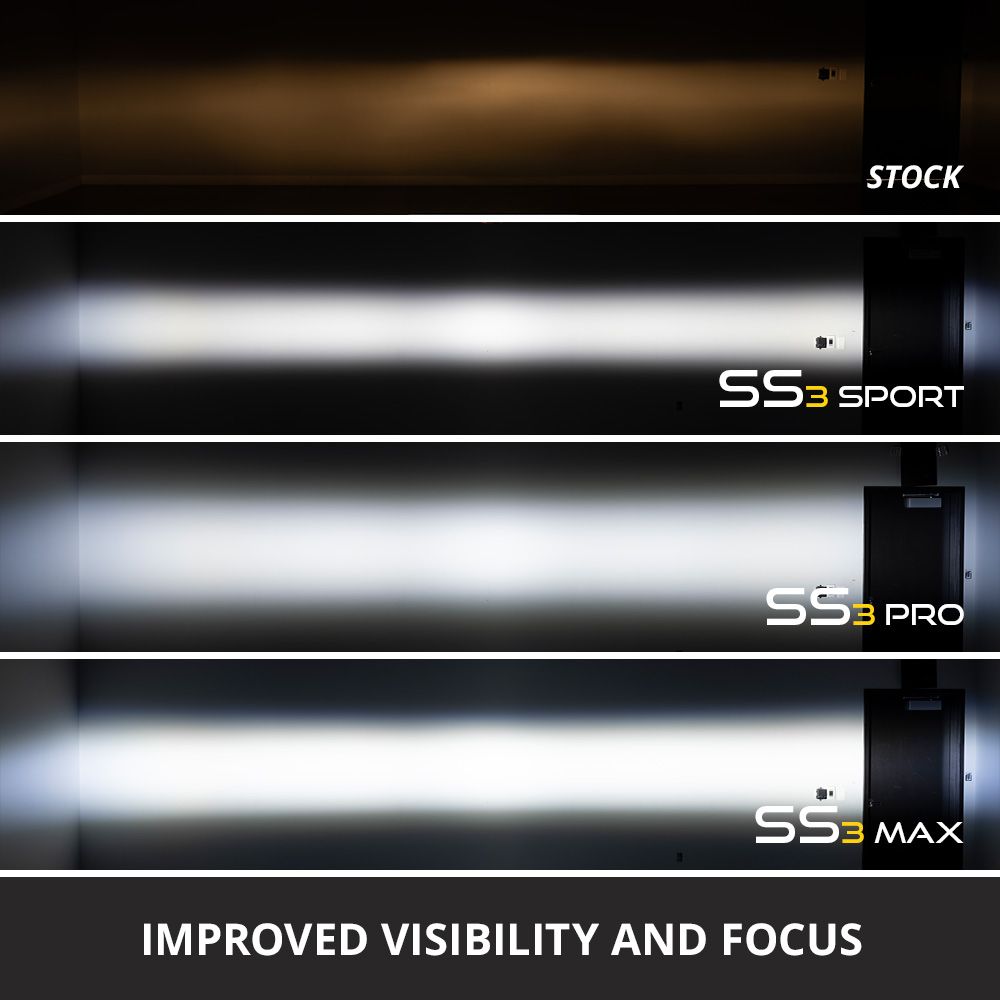

Sport, Pro, or Max. Stage Series LED pods are available at three different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs, and is the best bang for the buck you’ll find. The Pro model steps things up in a big way, with double the total power. Finally, the Max model is designed with cutting-edge automotive emitters, for both high power and extreme intensity. This brand new technology comes at a cost, but if you’re looking for the absolute best in lighting performance, the SS3 Max is the answer.
Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They’ve also been put to the test on-road by racers and enthusiasts alike.
Trusted. For over a decade, HID Kit Pros in Bellevue, Washington has been providing customers with the best quality automotive lighting and accessories while backing it up with unbeatable customer service. Every employee at HKP has been trained on our wide selection of products to help suit each and every customers needs. Local? Stop by our showroom and installation center, test out our products in person with our state of the art testing equipment. Have a question? Contact us.
What’s Included
-
Fitment: Fits 2019-2026 Mercedes-Benz Sprinter models equipped with factory fog lights and the Exterior Lighting Package. Not compatible with vehicles without the Exterior Lighting Package.
Application: Fog LightMake: Mercedes-BenzModel: SprinterYears: 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026

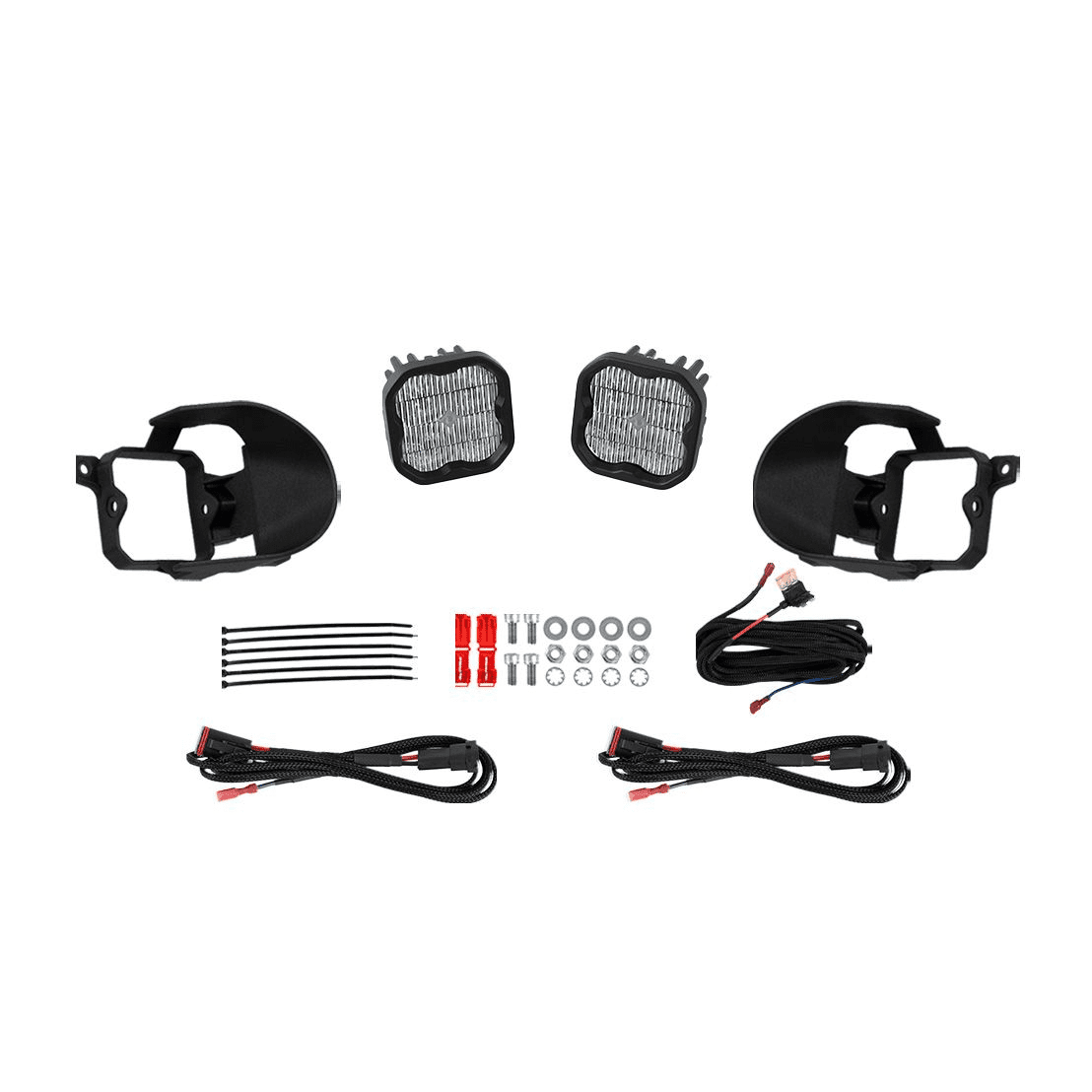

In the Box:
- Two (2) SS3 Standard LED fog pods
- One (1) Left bracket
- One (1) Right bracket
- Two (2) H11-to-DT 4-pin adapters
- One (1) Sprinter backlight harness
- Mounting Hardware
