Product Description

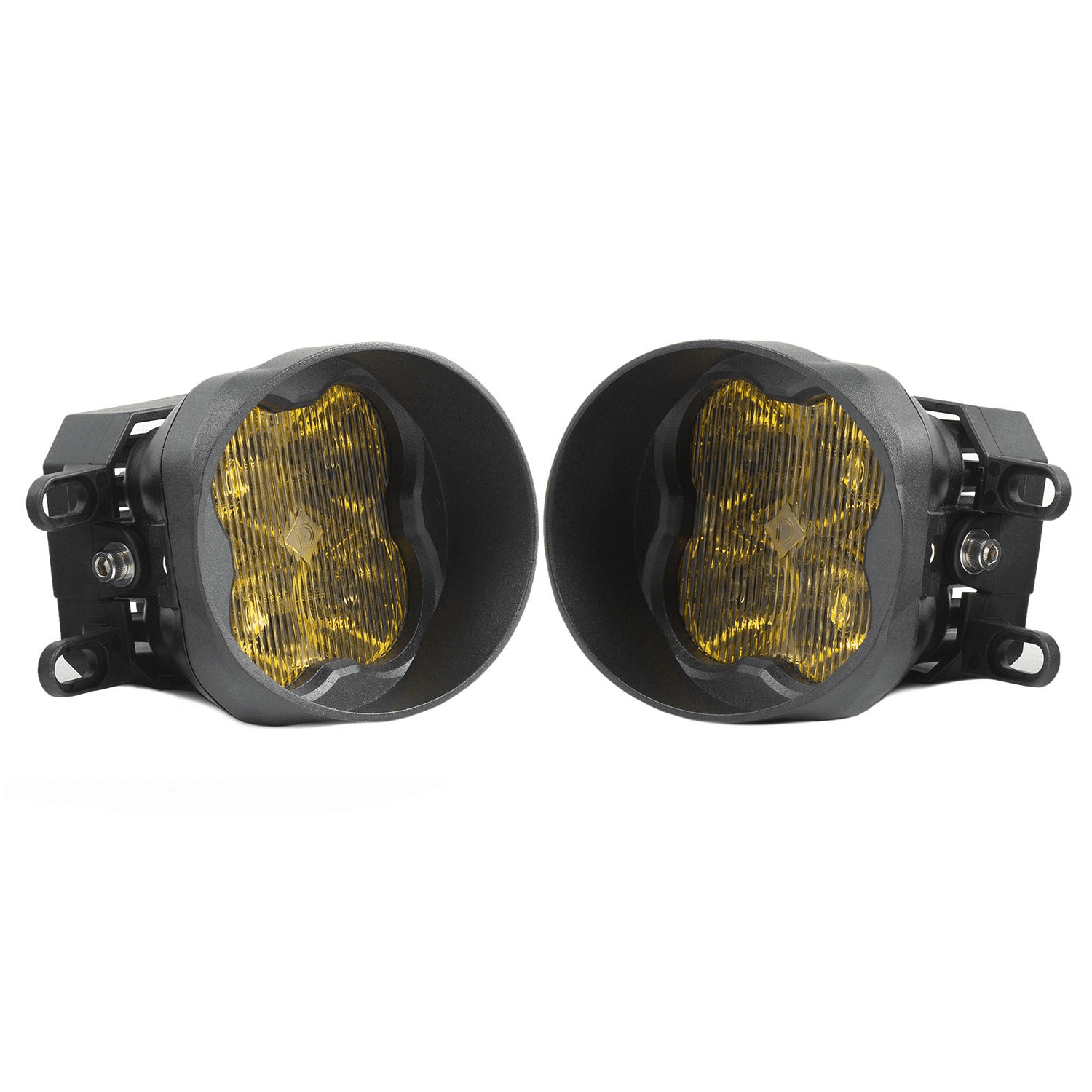

Overview. Upgrade your fog lights with our SS3 Type B Fog Light Bracket Kit! Featuring higher output intensity than any other 3” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included angled bezel, the SS3 Fog Kit has a clean, factory-style appearance, only much brighter!
Plug and Play. Thanks to custom-molded brackets, the SS3 Fog Light Bracket Kit can be installed on your vehicle in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Wire adapters are included to connect the lights to your factory bulb sockets – no additional wiring needed!
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.
SAE Compliant. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.
SAE Driving is designed to supplement your high beams, but it’s great for general illumination as well. Rather than a traditional “spot” pattern, the Stage Series Driving pattern shines in an 18×8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds.
SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.
When installed as a pair and aimed in accordance with your state’s regulations, the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light, and the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

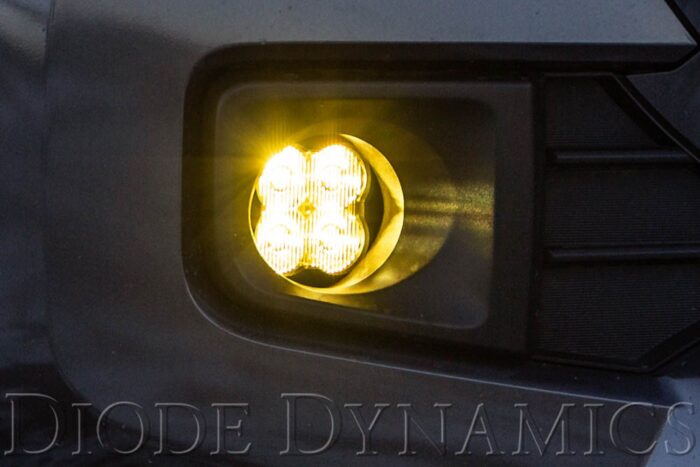

White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.
Sport, Pro, or Max. Stage Series LED pods are available at three different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs, and is the best bang for the buck you’ll find. The Pro model steps things up in a big way, with double the total power. Finally, the Max model is designed with cutting-edge automotive emitters, for both high power and extreme intensity. This brand new technology comes at a cost, but if you’re looking for the absolute best in lighting performance, the SS3 Max is the answer.
Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They’ve also been put to the test on-road by racers and enthusiasts alike.
Trusted. For over a decade, HID Kit Pros in Bellevue, Washington has been providing customers with the best quality automotive lighting and accessories while backing it up with unbeatable customer service. Every employee at HKP has been trained on our wide selection of products to help suit each and every customers needs. Local? Stop by our showroom and installation center, test out our products in person with our state of the art testing equipment. Have a question? Contact us.
What’s Included
- Two (2) SS3 3” Angled LED Pods
- Two (2) H11 DT Adapters
- Mounting brackets and hardware
Compatibility
-
- Lexus CT200h 2014-2017
- Lexus ES350 2013-2018
- Lexus ES300h 2013-2018
- Lexus GS200t 2016-2017
- Lexus GS350 2013-2020
- Lexus GS450h 2014-2018
- Lexus HS250h Base 2010-2012
- Lexus HS250h Premium 2010-2012
- Lexus HS250h Ultra Premium 2010-2011
- Lexus IS200t 2016
- Lexus IS250 2014-2015
- Lexus IS350 2014-2016
- Lexus IS F 2008-2014
- Lexus LX570 2008-2011
- Lexus LX570 2013-2015
- Lexus NX200t Base 2015-2017
- Lexus NX200t Premium 2015-2017
- Lexus NX200t F Sport 2017
- Lexus NX300h 2018-2020
- Lexus NX300h Base 2015-2020
- Lexus NX300h F Sport 2018-2020
- Lexus NX300h Premium 2015-2020
- Lexus RX350 2010-2013
- Lexus RX350 Base 2014-2020
- Lexus RX350 F Sport 2013
- Lexus RX350 F Sport 2016-2021
- Lexus RX350 Premium 2014-2015
- Lexus RX450h 2010-2013
- Lexus RX450 Base 2015-2020
- Lexus RX450 F Sport 2016-2020
- Lexus RX450 Premium 2014-2015
- Lexus RX450L 2020
- Subaru Legacy 2015-2017
- Toyota 4Runner 2014-2024
- Toyota Avalon 2007-2012
- Toyota Camry 2007-2015
- Toyota Corolla 2009-2016
- Toyota Highlander 2008-2010
- Toyota Highlander 2014-2022
- Toyota Matrix 2009-2013
- Toyota Prius 2010-2011
- Toyota Prius 2015-2016
- Toyota Prius C 2012-2016
- Toyota Prius V 2012-2016
- Toyota RAV4 2006-2012
- Toyota RAV4 2016-2021
- Toyota Solara 2007-2008
- Toyota Tacoma 2012-2022
- Toyota Tundra 2014-2021
- Toyota Venza 2009-2014
- Toyota Yaris 2007-2016
