JW Speaker 8631 Evolution 5-3/4″ LED Headlight

$449.95

JW Speaker

Product Description

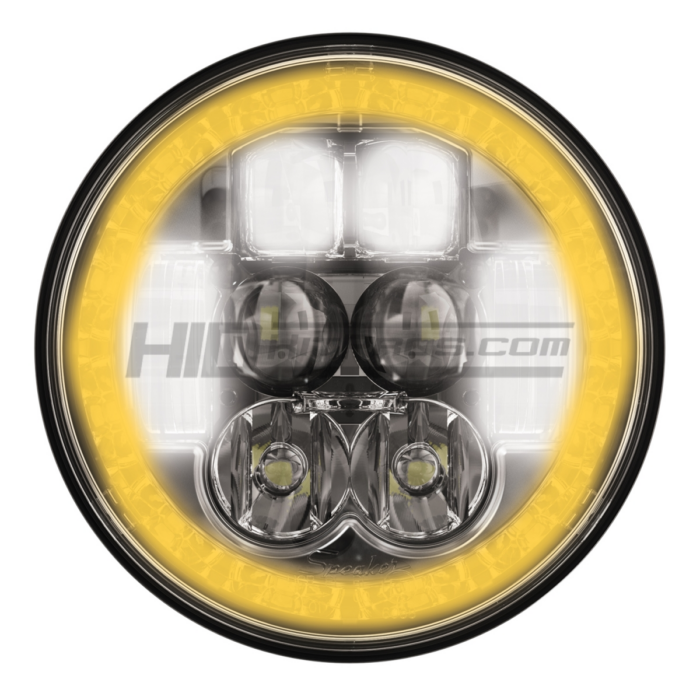

New – The new Model 8631 Evolution LED headlight brings you all of the same great features found in our Model 8630 Evolution headlight, with the addition of a turn signal. Amber in color, the new turn signal is designed in the outer ring of the lamp to display a flashing circle when in use.



Clean – This unique-looking headlight features high and low beam, as well as a daytime running light (DRL) & front position (FP) functions. The Model 8631 Evolution LED headlight offers a powerful LED upgrade option for 5.75″ (PAR46) sealed beam headlights.



  • DOT- and ECE-compliant functions make this product 100% street legal.
  • Easy plug and play installation uses Delphi wire connector
  • Turn signal, daytime running light (DRL) & front position functions utilize a outer ring at high intensities.
  • Produces identical light output to the Model 8630 Evolution LED headlight.



Trusted – For over a decade, HID Kit Pros in Bellevue, Washington has been providing customers with the best quality automotive lighting and accessories while backing it up with unbeatable customer service. Every employee at HKP has been trained on our wide selection of products to help suit each and every customers needs. Local? Stop by our showroom and installation center, test out our products in person with our state of the art testing equipment. Have a question? Contact us.



Voltage: DC 12 – 24V

Raw Lumens:

  • Low Beam – 2,025
  • High Beam – 2,925

Color: 5000k

Waterproof Rate:  IP 68

Current Draw (amperage):

  • 2.2A @ 12V
  • 1.2A @ 24V

Housing: 304 Die-Cast Aluminum

Lens: Polycarbonate

Certifications: DOT, CE, RoHS and EMC Certified

Replaces: 4000, 4040, 5001, 5506, H5001, 5009, H5006, H5006LL, H5009, H5001XV

Dimensions:

  • Height – 5.60 in.
  • Width – 5.60 in.
  • Depth – 3.40 in.

Sold: Individually

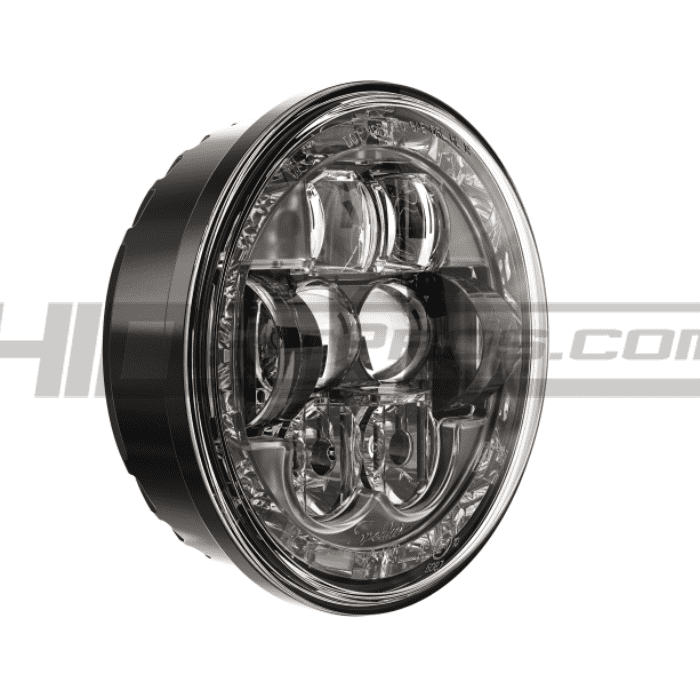

JW Speaker 8630 5 Inch Round Sealed Beam LED Conversion Headlight

Additional Information

Weight 4.0 lbs
Shipping Dimensions 7 × 7 × 7 in
Shipping

Ships Same Day

Sold

Individually

Brand

J.W. Speaker

Warranty

Limited Lifetime

Size

5-3/4″ Round

Why HID Kit Pros?

All of our work LED lights and light bars have gone through years of extensive research and testing. Each and every one is an HID Kit Pros exclusive using the best materials available, giving you the best quality lighting there is.

See more on how our LED lighting differs from the rest here

-Shatterproof Polycarbonate Lens

-IP68 Waterproof Rating

-Variable Voltage: 10-30V

-CREE LED Chips Inside

-PWM Thermal Heat Management Regulation

-Instant On/Off: No Warm Up Time
