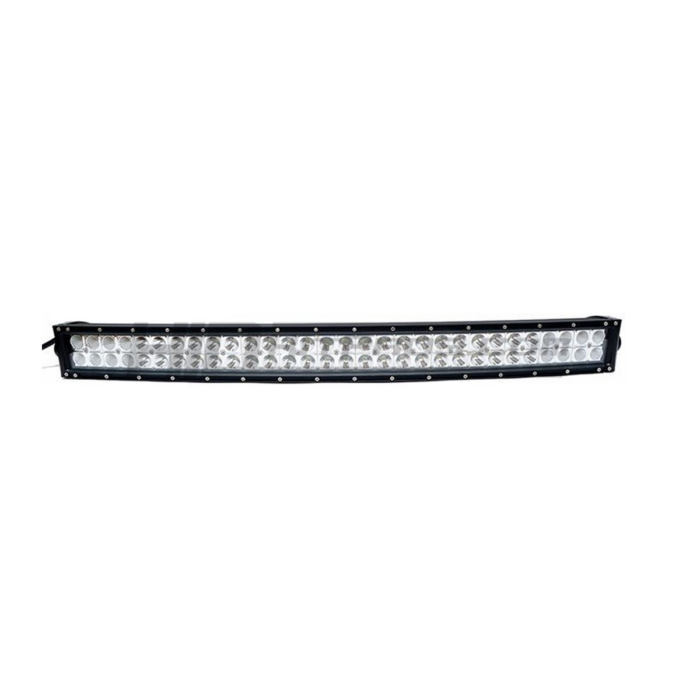

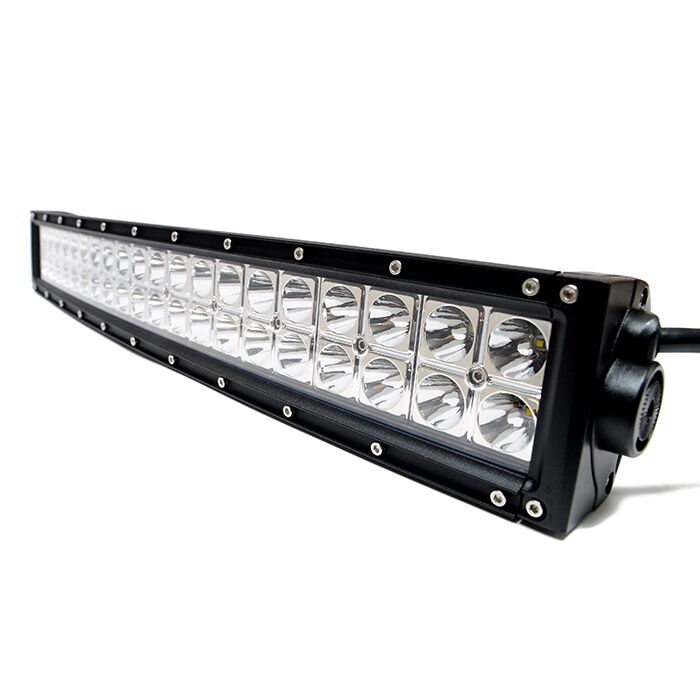

TOTRON 20″ DCX Series Curved LED Light Bar – TLB3120X



Add Plug-and-Play Wiring Harness? *

Search Part # THS311D16 for more information.

Product Description

Popular Demand – The TOTRON TLB3120X 20 inch dual row curved LED light bar is the most popular size we offer due ease of fitment on most cars, trucks and SUV’s.  We have customers installing these with a perfect fitment behind grilles and bumpers as well as tractors and trailers; the options are endless.


Powerful – Producing an astounding 9,000+ lumens, you will have no trouble seeing what is ahead of you.  Offered in a combo beam pattern which features precision flood optics on the ends with retina burning spot pattern in the center of the bar.  Spot sends light straight ahead in a concentrated area whereas flood sends light to the sides as well as ahead, just not as concentrated in one area as you would find in our spot only beam.


Spec’d Out – In our combination beam pattern, the outer most LED’s are flood beam and inner most LED’s are spot. Compared side by side with a Rigid E Series, these light bars have the same high quality build, higher total wattage and lumen output at a significantly reduced cost.


Trusted – For over a decade, HID Kit Pros in Issaquah, Washington has been providing customers with the best quality automotive lighting and accessories while backing it up with unbeatable customer service. Every employee at HKP has been trained on our wide selection of products to help suit each and every customers needs. Local? Stop by our showroom and installation center, test out our products in person with our state of the art testing equipment. Have a question? Contact us.


Output Power (wattage): 120W

Input Voltage: DC 10 – 30V

Lumens: 9,600


  • Brand – CREE
  • Wattage – 3W Per Chip
  • Quantity – 40x Chips

Waterproof Rate: IP 67

Current Draw (amperage):

  • 8.60A @ 12V
  • 4.00A @ 24V

Housing: Die-Cast Aluminum

Lens: Polycarbonate

Mounting Brackets: 304 Stainless Steel (included)

Certifications: CE, RoHS and EMC Certified

Beam Pattern (read more here):

  • Combo – Spot and Flood

Dimensions: Detailed specs found here

Sold: Individually

Additional Information

Weight 8.0 lbs
Shipping Dimensions 27 x 6 x 6 in

Ships Same Day





Beam Pattern

Combo (Spot/Flood)

LED Chip


Output Color

Pure White


Dual Row


1 Year


All of the LED auxiliary lights and LED light bars from TOTRON have gone through years of extensive research and testing. Each and every one is an TOTRON exclusive product using the best materials available, giving you the best quality lighting there is.

See more on how TOTRON LED lighting differs from the rest here

-Shatterproof Polycarbonate Lens

-IP68 Waterproof Rating

-Variable Input Voltage: 10 – 30V

-Genuine CREE LED Chips Inside

-PWM Thermal Heat Management Regulation

-Instant On/Off: No Warm Up Time
