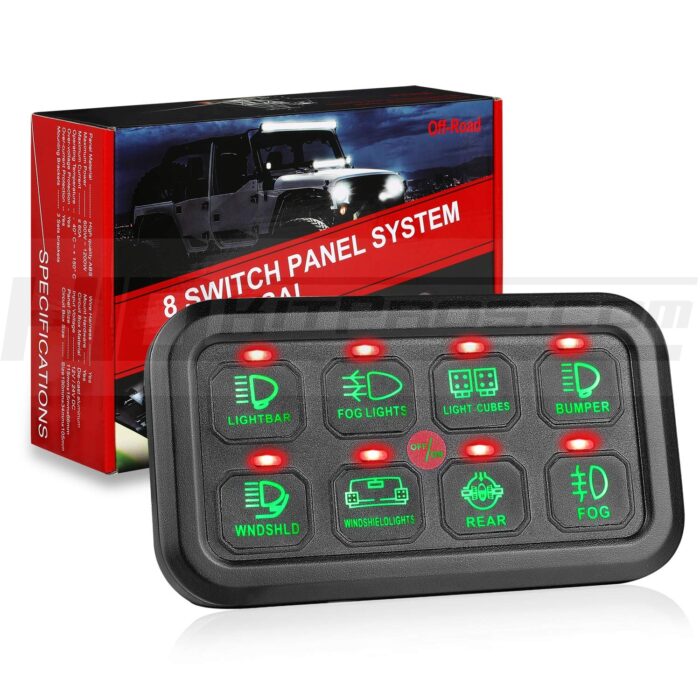

TOTRON 8 Channel Universal Switch Panel

$249.95

TOTRON

In stock (ships same day)

Product Description

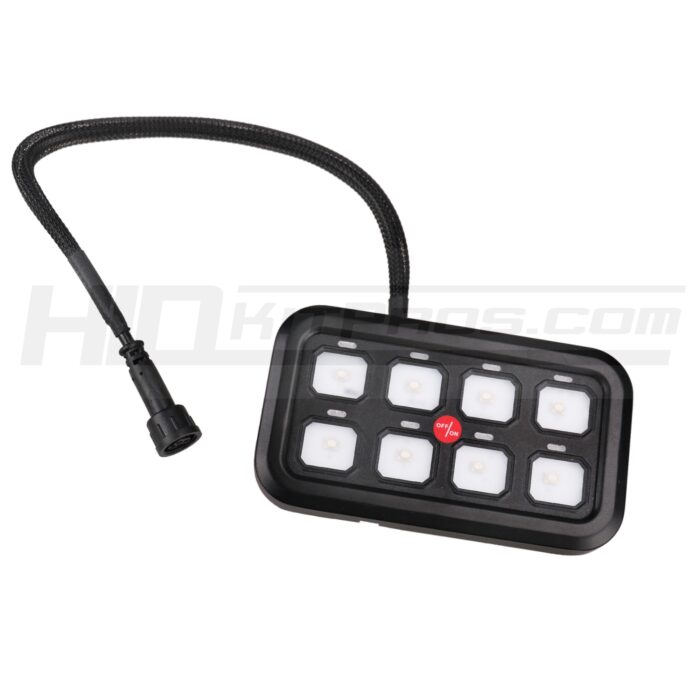

Switch Panel – The all new TOTRON 8 Channel Switch Panel features a compact, solid state power system which allows the control of 8 auxiliary lights or electrical devices on your car, truck or off road vehicle. Complete with dimmable green back light and 50 switch labels, you can control your entire rig with a single universal panel from TOTRON.

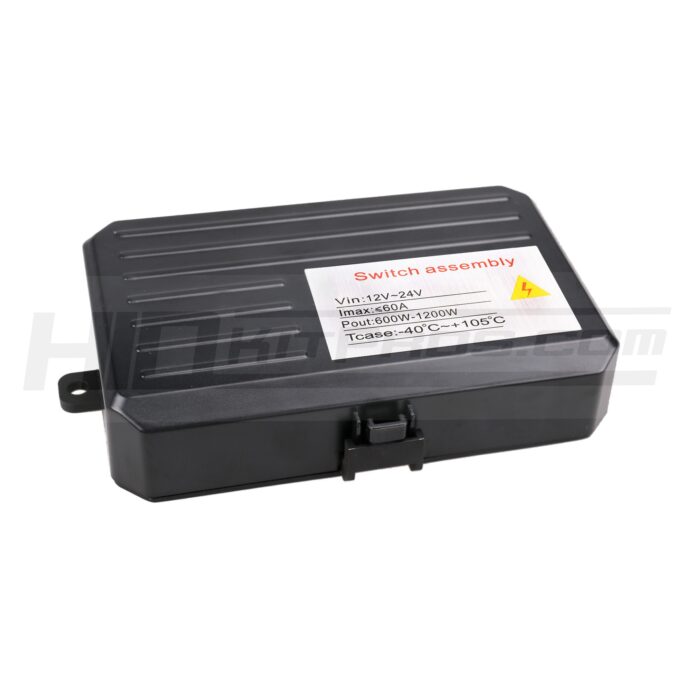

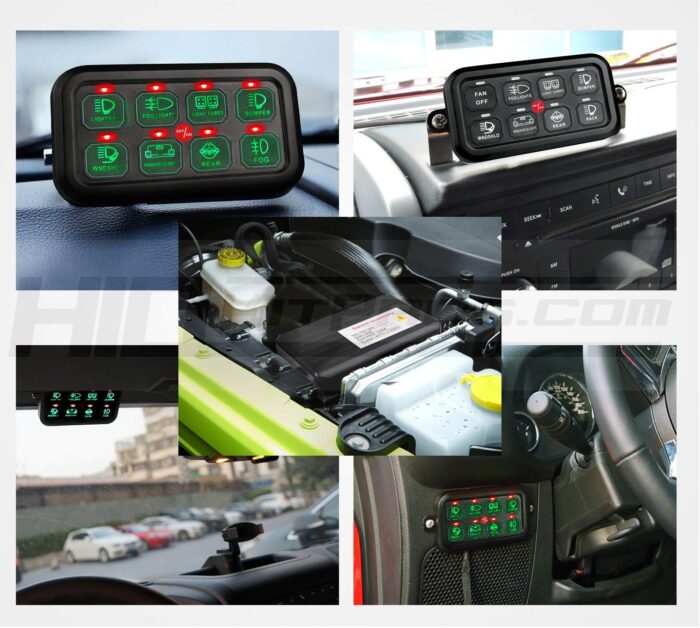

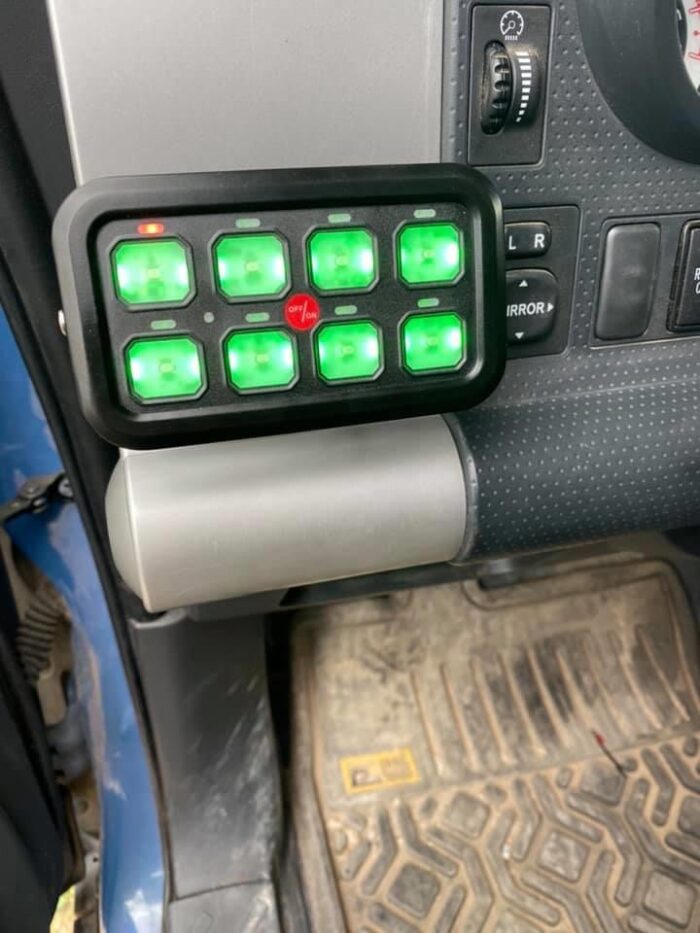

Fit & Finish – The touch panel can be mounted virtually anywhere with its small 2×4 inch footprint, commonly found in overhead consoles, sunglasses holders, dash panels, pillars and more. The included die-cast aluminum control box measuring in at just 4×6 inches, can easily be mounted under hood making this the ideal switch system for any 12 or 24 volt accessories.



Wiring – The included plug and play wiring harness with built in fuses and relays, features plenty of length to install your new switch system virtually anywhere in the front of your vehicle. The panel can easily be installed with the included bracket which removes the need to create any large holes in your rig, saving you time and unnecessary modifications. This system is capable of providing 60 amps of continuous power to keep even your most power hungry accessories running at all times.



Safety – This all in one switch system comes pre-built with a 100 amp resettable circuit breaker, thermal protection, overload and over current protection as well as reverse polarity protection. There is no need to purchase extra components or parts, everything you’ll need for an awesome addition to your car or truck is included.



Trusted – For over a decade, HID Kit Pros in Issaquah, Washington has been providing customers with the best quality automotive lighting and accessories while backing it up with unbeatable customer service. Every employee at HKP has been trained on our wide selection of products to help suit each and every customers needs. Local? Stop by our showroom and installation center, test out our products in person with our state of the art testing equipment. Have a question? Contact us.

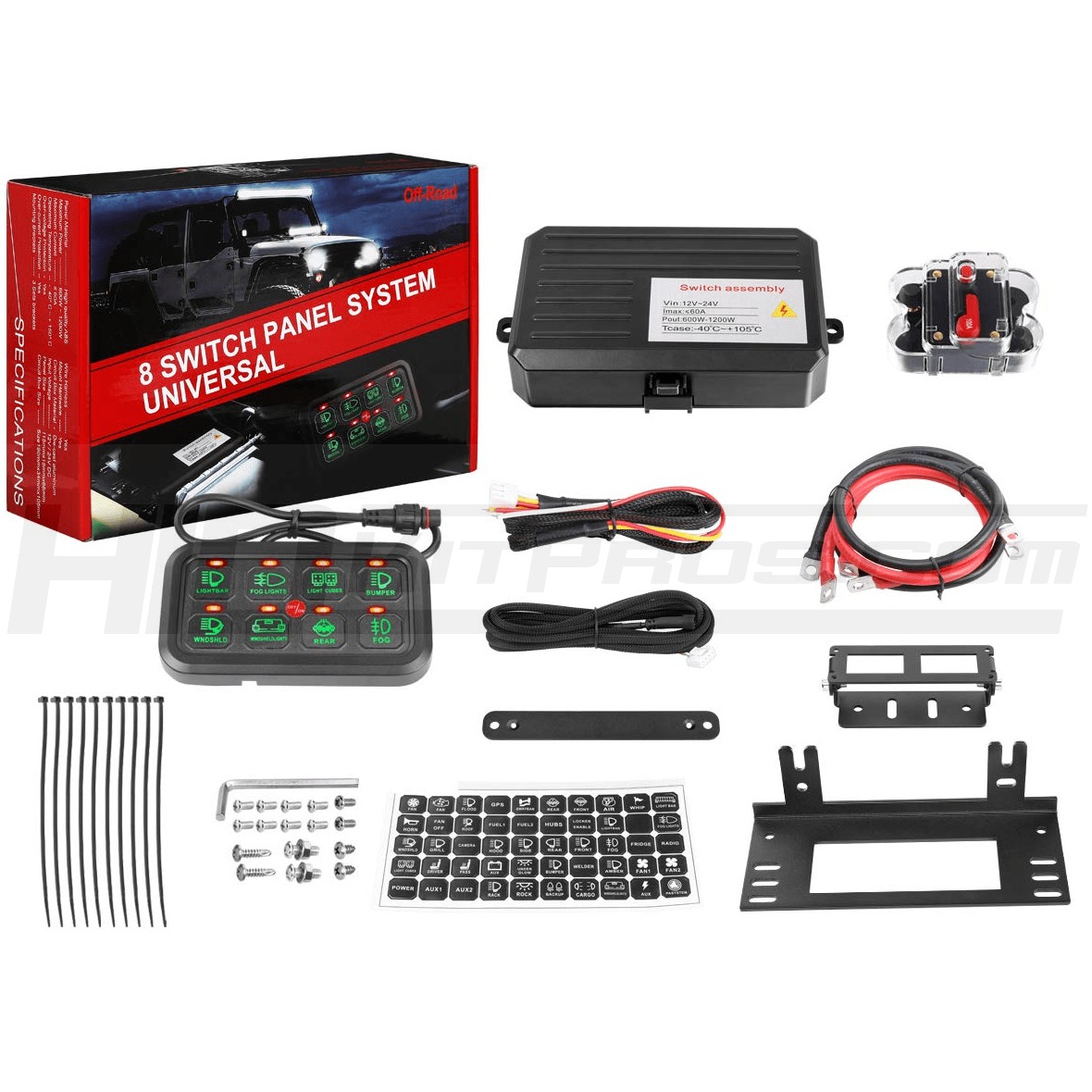

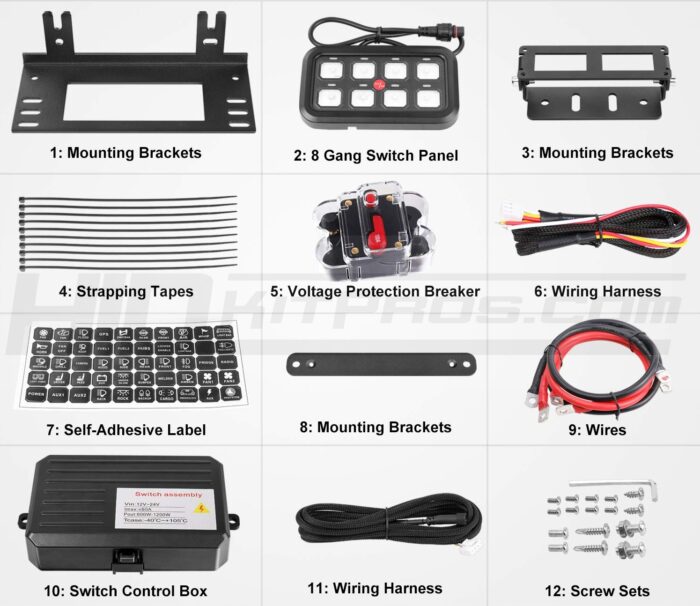

What’s Included

  • Panel: 8 Gang Switch Panel

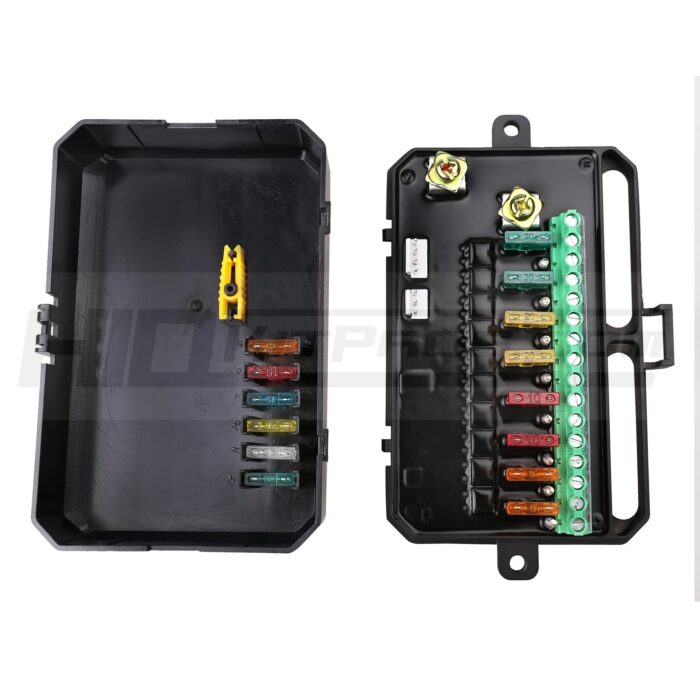

  • Control Box: Circuit Box w/ Fuses

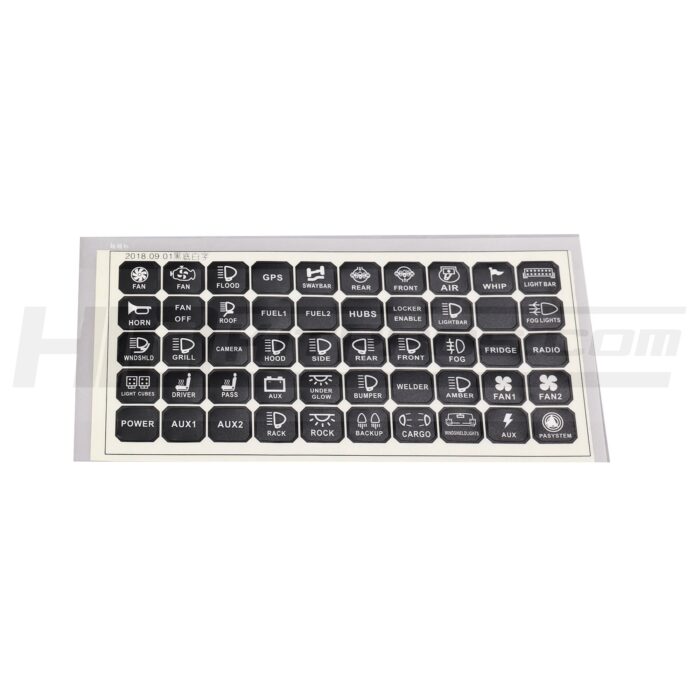

  • Labels: 50x Label Sheet

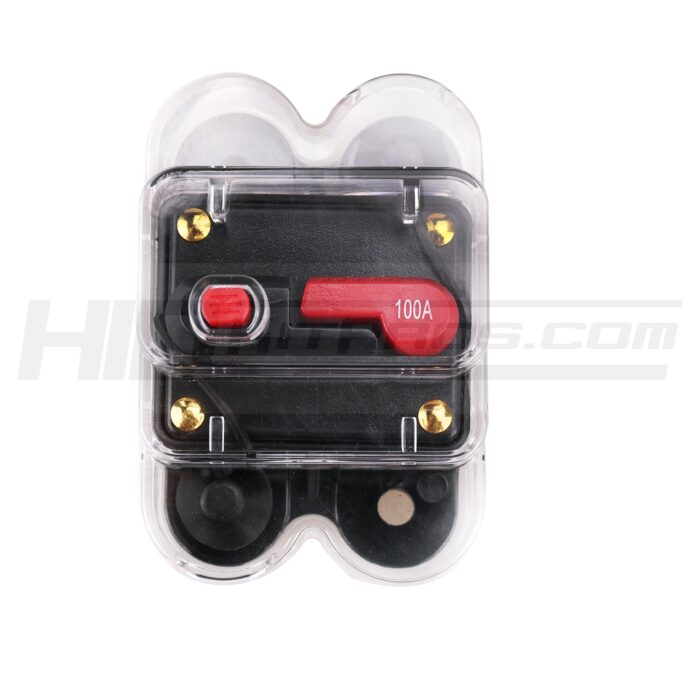

  • Circuit Breaker: Resettable

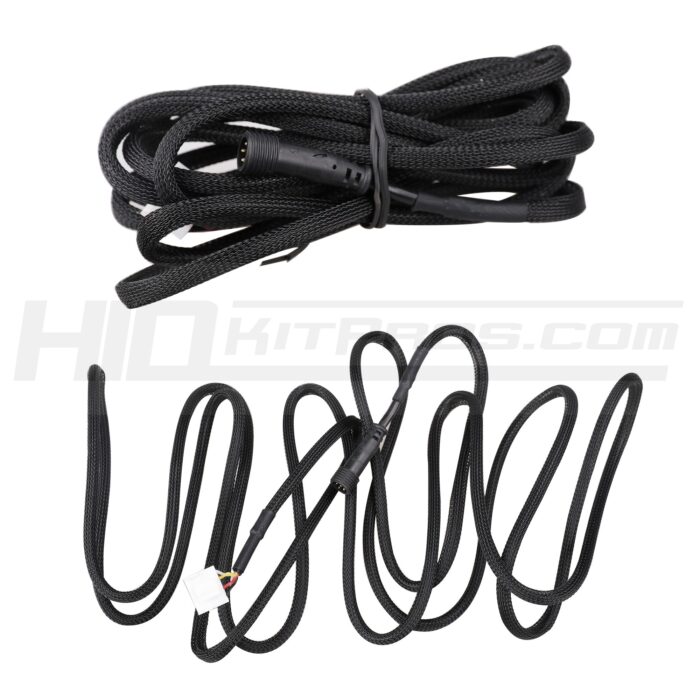

  • Wiring: Plug and Play Harness / Battery Cables

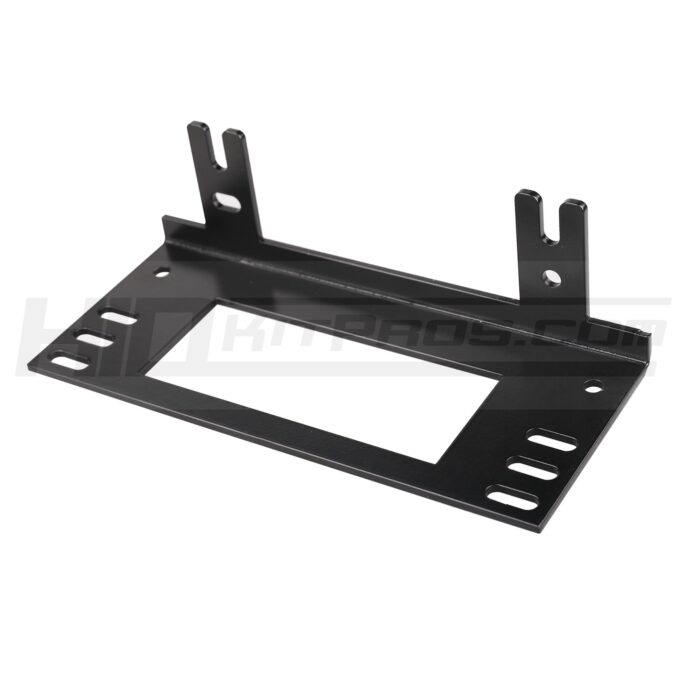

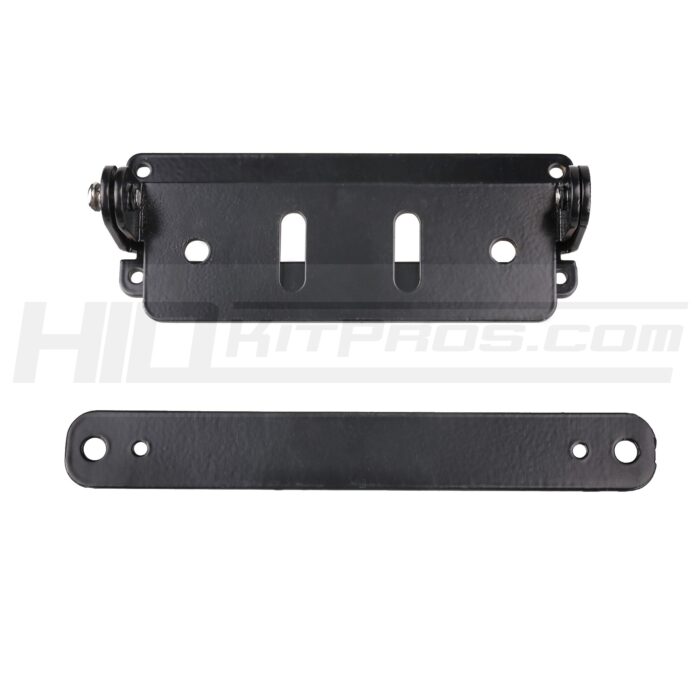

  • Brackets: 2 Sets / Screws
  • Guide: Installation Manual
  • Misc.: Spare Fuses

Technical

  • Panel Size: 4.5 x 2.6 x 0.6 in.
  • Panel Back Light: Green
  • Circuit Box Size: 6.4 x 4.3 x 1.3 in.
  • Input Voltage: 12V / 24V DC
  • Maximum Power: 600W at 12V / 1200W at 24V
  • Maximum Current: 60A
  • Maximum Instantaneous Current: 100A
  • Circuit Ratings: 2x 5A, 2x 10A, 2x 20A, 2x 30A

Additional Information

Weight 4.00 lbs
Shipping Dimensions 8 x 8 x 4 in
Shipping

Ships Same Day

Sold

Individually

Brand

TOTRON

Switch Shape

Square

Switch Style

Push Button
