Product Description

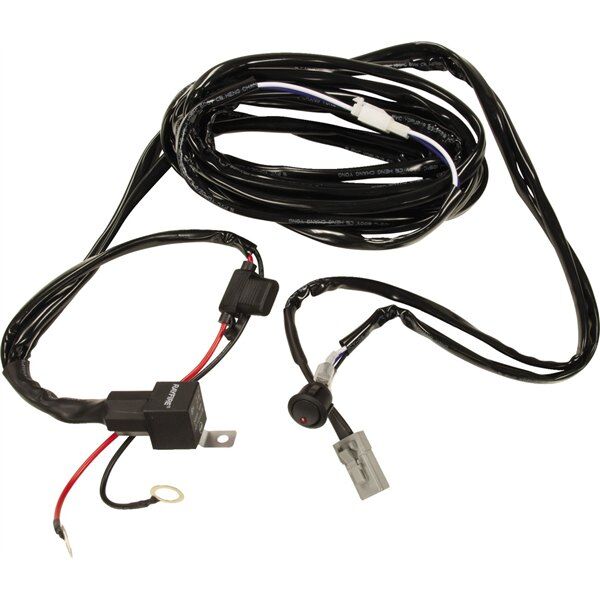

The TOTRON THS311A14 LED Light Bar universal wiring harnesses are a perfect way to power your new light bars with plenty of power and length of wire for most jobs. One wiring harnesses will provide power to one light bar above 120W with the same connector ends as this harness, allowing you to safely connect directly to the battery while having a pre-wired on/off switch. Switch can easily be removed and replaced with any switch of your liking. Includes heavy duty wiring and fuse holder with fuse allowing for a simple installation. Complete wiring harness for TOTRON DC Series dual row light bars from 30 inch to 54 inch.
Also offered in a dual output option TOTRON THS312A14
Wattage (max): 400W
Relay:
- Voltage: DC 12V
- Amperage: 40A
Switch: On/Off switch with LED indicator
Continuous Use Load: 20 Amps
Fuse: Waterproof
Wiring Length:
- Relay to Battery – 19.69 in.
- Relay to End – 118.11 in.
- Relay to Switch – 114.17 in.
Features:
- 14 Gauge Wiring – For use with 12V systems only
- Maximum Load: 25 Amps
- Waterproof Fuse Holder with 30 Amp Fuse

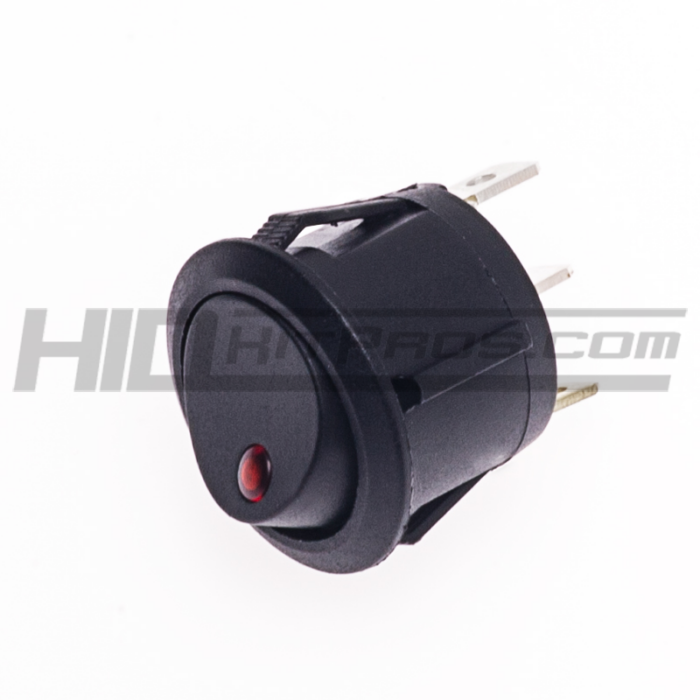

- Rocker Switch mounts flush in 3/4″ hole diameter up to 1/16″ thick panel.
- Rocker Switch can also be easily changed to other switches
