Product Description

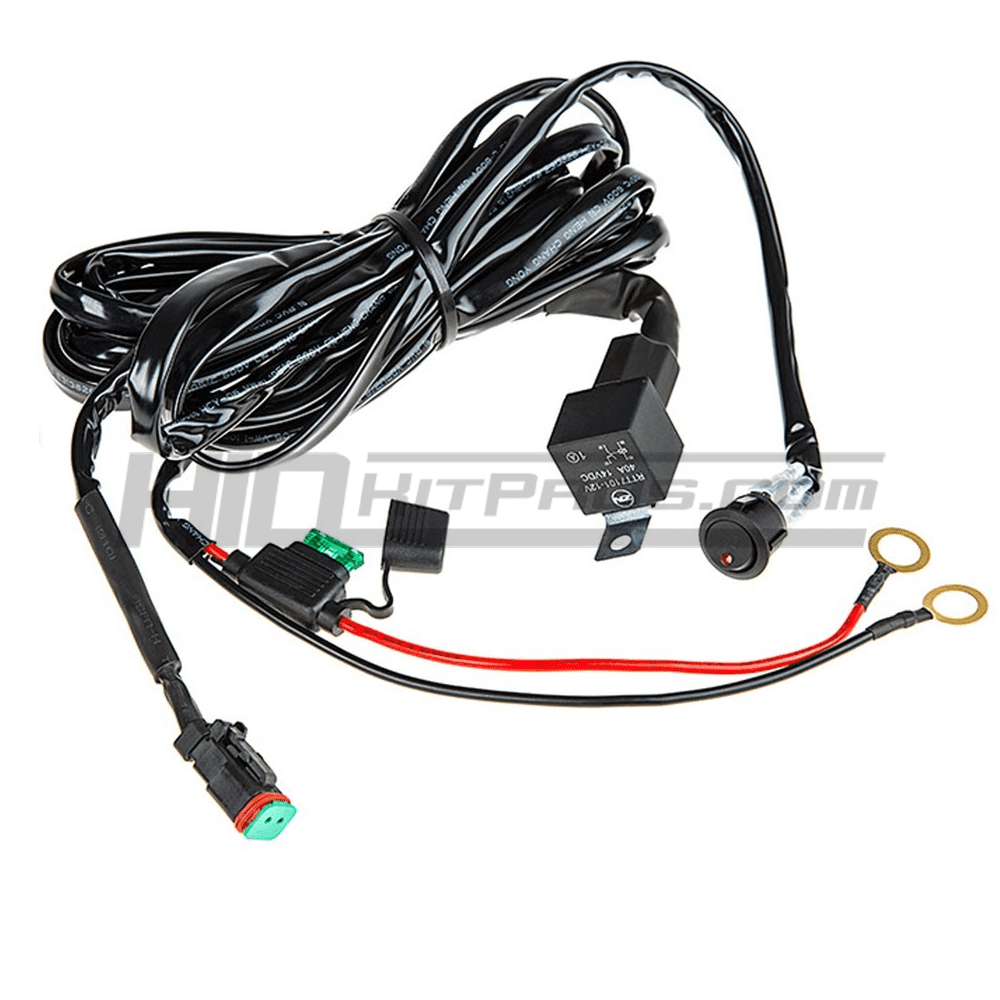

These universal wiring harnesses are a perfect way to power your new light bars with plenty of wiring for most jobs. One wiring harnesses will provide power to one light bar up to 120W, allowing you to safely connect directly to the battery while having a pre-wired on/off switch. Switch is easily removable if a different style is preferred. Includes heavy duty wiring and fuse holder with fuse allowing for a simple installation. Complete wiring harness for our single and dual row light bars up to 120 watts. For larger bars such as 30, 40 and 50 inch (180w+), the harness can be found here.
Also offered in a dual output THS311D16 and quad output THS312D14 configurations.
Specifications:
Wattage (max): 120W

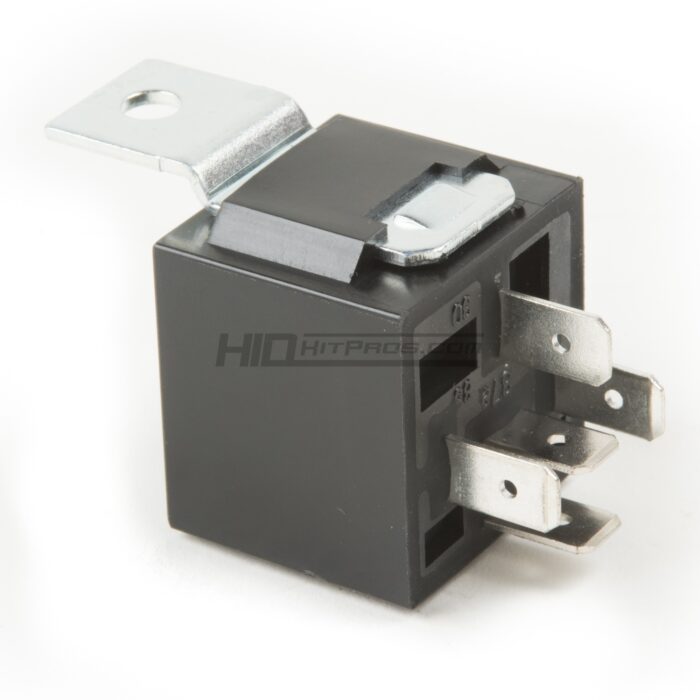

Relay:
- Input Voltage: DC 12V
- Amperage: 40A
Switch: On/Off switch with LED indicator
Continuous Use Load: 10 Amps
Fuse Holder: Waterproof
Wiring Length:
- Relay to Battery – 19.69 in.
- Relay to End – 118.11 in.
- Relay to Switch – 114.17 in.
Features:
- 16 Gauge Wiring – For use with 12V systems only
- Maximum Load: 20 Amps
- Waterproof Fuse Holder with 30 Amp Fuse
- Rocker Switch mounts flush in 3/4″ hole diameter up to 1/16″ thick panel.
- Rocker Switch can also be easily changed to other switches
