TOTRON 10″ SR Series LED Light Bar – TLB1030



Add Plug-and-Play Wiring Harness? *

Add a single output wiring harness to power up to 1x light bar with one harness/switch or a dual output wiring harness to power 2x light bars with one harness/switch or a quad output wiring harness to power 4x light bars with one harness/switch. Search part #THS-311-D16 (single output) or part #THS-312-D16 (dual output) or part #THS-312-D14 (quad output) for more information.

Product Description

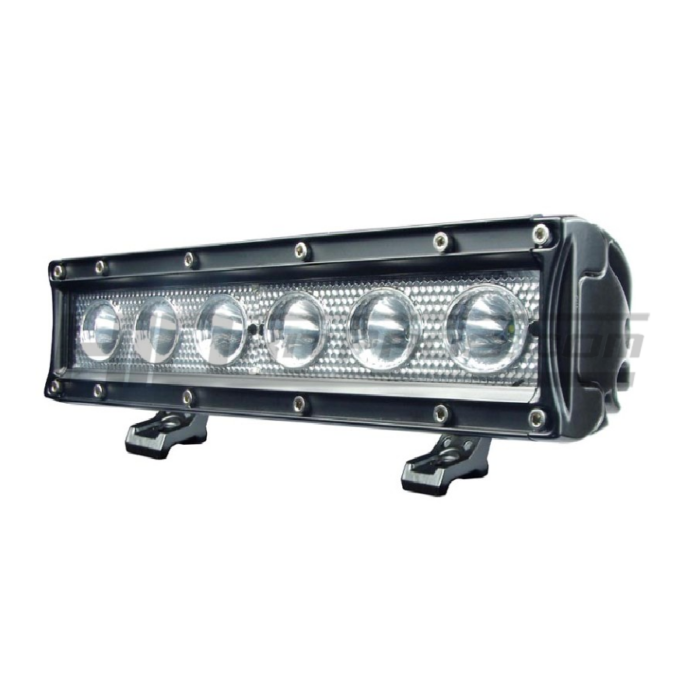

The 10″ Single Row Cree LED light bar will provide some of the brightest and intense lighting on the market today. The light bar contains 6 Cree high intensity 5 watt LED’s, providing a total 30 watts combined. The 10″ Single Row light bar has a fully waterproof housing and polycarbonate lens, ensuring durability in the most extreme conditions. Not only is the light bar great for your car, truck or SUV but it can be used in virtually any application from boats to mobile command units.

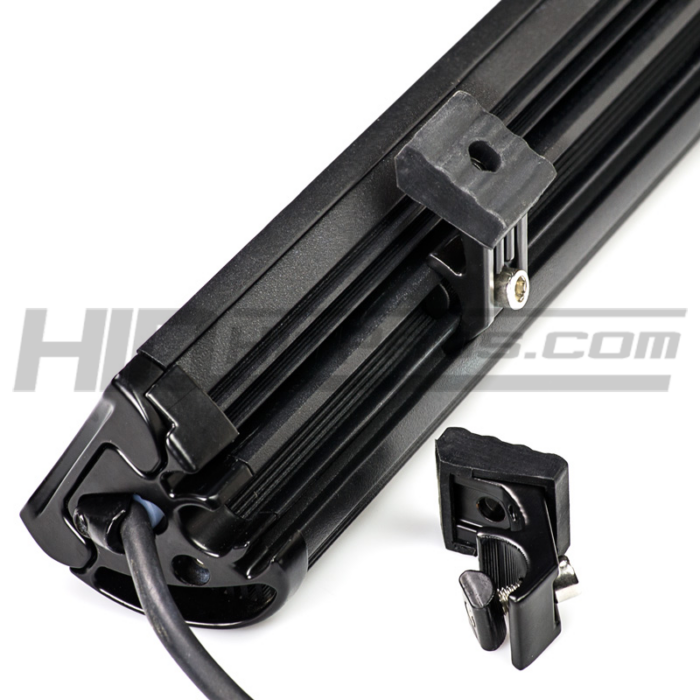

The 10″ Cree LED Light Bar comes with mounts that can be flipped for top or bottom mounting on any flat surface. If you want to mount your light bar to a tube, we offer the Tube Mounting Clamps as an option as well, found here. We also offer a Wiring Harness and Switch Kit as an option found here, which provides the wires needed to install the light bar.


Power (wattage): 30W


  • Brand – CREE
  • Wattage – 5W Per Chip
  • Quantity – 6x Chips

Voltage: DC 10 – 30V

Lumens: 2,160

Beam Distance: 1,080 ft.

Waterproof Rate:  IP 68

Current Draw (amperage):

  • 2.40A @ 12V
  • 2.12A @ 24V

Housing: Die-Cast Aluminum

Lens: Polycarbonate (covers found here)

Mounting Bracket: 304 Stainless Steel (included)

Certifications: CE, RoHS and EMC Certified

Beam Pattern (read more):

  • Flood – 120 Degree
  • Spot – 8 Degree


  • Length – 10.50 in.
  • Width – 2.55 in.
  • Height – 2.55 in.

Sold: Individually

Additional Information

Weight 4.0 lbs
Shipping Dimensions 20 x 5 x 5 in

Ships Same Day





Beam Pattern

Flood, Spot

LED Chip


Output Color

Pure White


Single Row


1 Year


All of the LED auxiliary lights and LED light bars from TOTRON have gone through years of extensive research and testing. Each and every one is an TOTRON exclusive product using the best materials available, giving you the best quality lighting there is.

See more on how TOTRON LED lighting differs from the rest here

-Shatterproof Polycarbonate Lens

-IP68 Waterproof Rating

-Variable Input Voltage: 10 – 30V

-Genuine CREE LED Chips Inside

-PWM Thermal Heat Management Regulation

-Instant On/Off: No Warm Up Time
