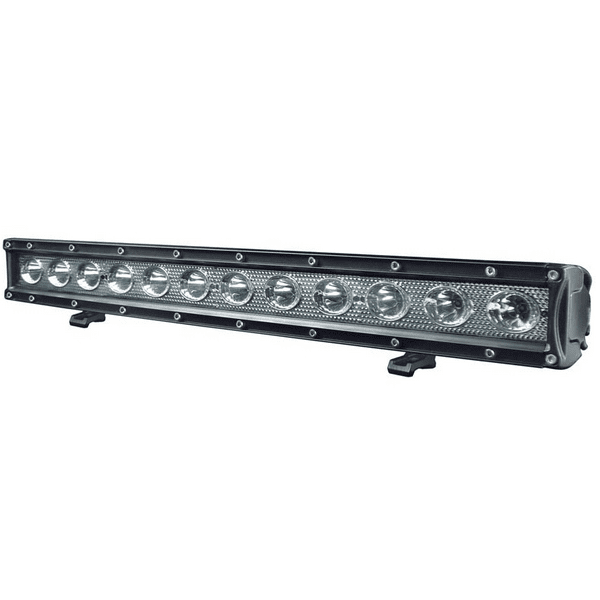

TOTRON 20″ Single Row LED Light Bar – TLB1060



Add Plug-and-Play Wiring Harness? *

Search Part # THS311D16 for more information. Includes loomed wire, switch, relay and waterproof fuse holder for a plug and play installation.

Product Description

Compact – The TLB1060 TOTRON 20″ Single Row LED Light Bar is great for every application from excavators to boats and trucks! With a smaller size than the 20″ Dual Row TOTRON LED Light Bar, it can fit easily into bumpers and tight spaces.


Powerful – With a total of 12 high powered 5W genuine CREE LED chips, this bar produces a massive 4,320 lumens, over five times the brightness of a standard headlight.


TOTRON – Check out the “Why TOTRON?” tab above to see why you should choose TOTRON over an eBay light bar. From extensive testing and research to the final stages of assembly and powder coating, TOTRON is the name you trust in LED lighting.


Trusted – For over a decade, HID Kit Pros in Issaquah, Washington has been providing customers with the best quality automotive lighting and accessories while backing it up with unbeatable customer service. Every employee at HKP has been trained on our wide selection of products to help suit each and every customers needs. Local? Stop by our showroom and installation center, test out our products in person with our state of the art testing equipment. Have a question? Contact us.



Power Output (wattage): 60W

Input Voltage: DC 10 – 30V

Lumens: 5,400


  • Brand – CREE
  • Wattage – 5W Per Chip
  • Quantity – 12x Chips

Beam Distance: 1,880 ft.

Waterproof Rate:  IP 68

Current Draw (amperage):

  • 4.80A @ 12V
  • 2.24A @ 24V

Housing: Die-Cast Aluminum

Lens: Polycarbonate (covers found here)

Certifications: CE, RoHS and EMC

Mounting Bracket: 304 Stainless Steel (included)

Beam Pattern (read more):

  • Flood – 120 Degree
  • Spot – 10 Degree


  • Length – 19.5 in.
  • Width – 1.80 in.
  • Height – 2.55 in.

Sold: Individually

Additional Information

Weight 6.00 lbs
Shipping Dimensions 29 x 5 x 5 in

Ships Same Day





Beam Pattern

Combo (Spot/Flood)

LED Chip


Output Color

Pure White


Single Row


1 Year


All of the LED auxiliary lights and LED light bars from TOTRON have gone through years of extensive research and testing. Each and every one is an TOTRON exclusive product using the best materials available, giving you the best quality lighting there is.

See more on how TOTRON LED lighting differs from the rest here

-Shatterproof Polycarbonate Lens

-IP68 Waterproof Rating

-Variable Input Voltage: 10 – 30V

-Genuine CREE LED Chips Inside

-PWM Thermal Heat Management Regulation

-Instant On/Off: No Warm Up Time
