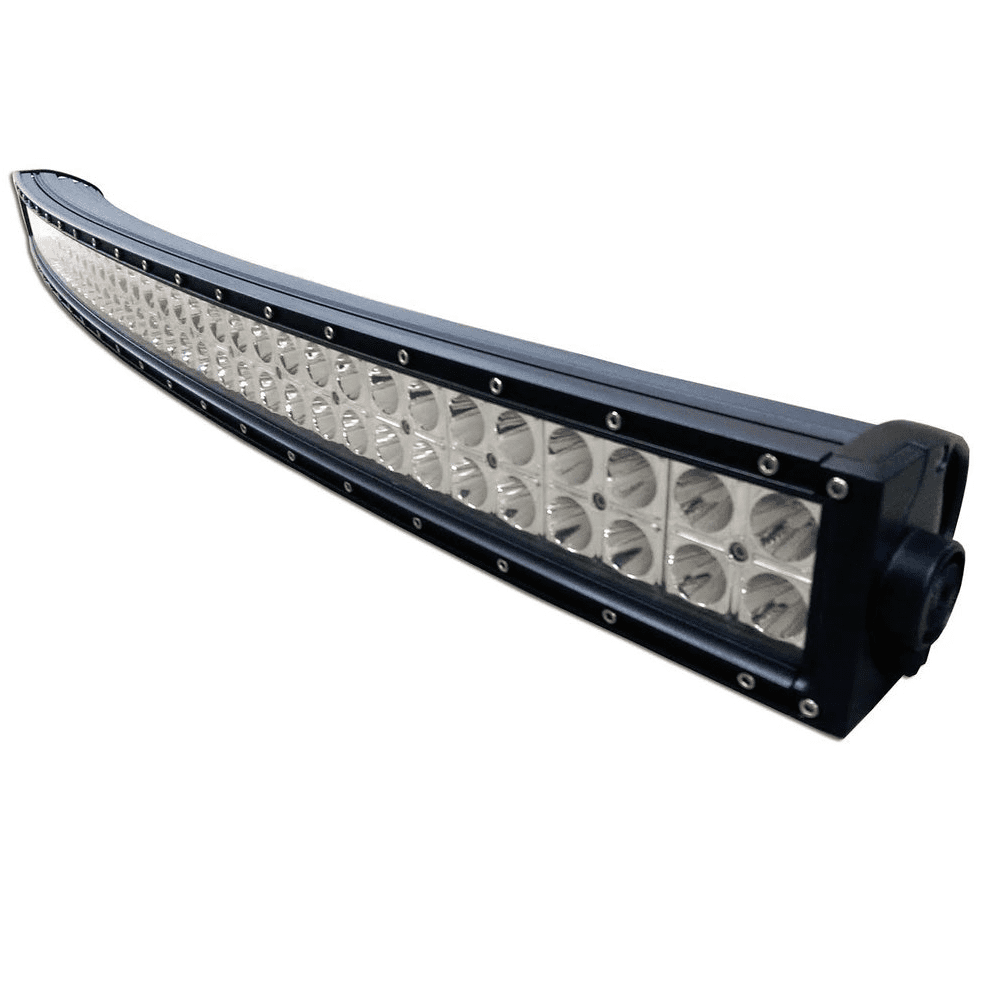

TOTRON 30″ DCX Series Curved LED Light Bar – TLB3180X



Add Plug-and-Play Wiring Harness? *

Save $10 off retail price ($29.95) when purchasing a wiring harness with your LED light bar.

Product Description

The TLB3180X DC Series light bars from TOTRON are perfect fitment for those of you looking to put a light bar on your RAZR or other off-road vehicle. The immense amount of light output allows you to put these light bars through hell and back without worrying about a filament burning out or water getting into the housings. Fully waterproof design allows for this light bar to be put to the test in virtually any and every application you throw at it. We have had customers install these as shop lights, on fishing boats, off road cars and trucks and more! Available in a 30″ Straight LED Light Bar as well as a 30″ Curved Single Row LED Light Bar as well.

Read more about the TOTRON 30″ Curved LED Light Bar

Output Power (wattage): 180W

Input Voltage: DC 10 – 30V

Lumens: 14,400 – 19x the brightness of a standard headlamp

Waterproof Rate:  IP 68

Certifications: EMC, CE and RoHS

Current Draw (amperage):

  • 12.70A @ 12V
  • 5.70A @ 24V

Housing: Die-Cast Aluminum

LED Chips:

  • Brand – CREE
  • Quantity – 86x
  • Wattage – 3W per chip

Lens: Polycarbonate

Mounting Brackets: 304 Stainless Steel (included)

Beam Pattern Option(s) (read more): Combo – Both Spot & Flood

Dimensions: Detailed sizes found here

Sold: Individually

Additional Information

Weight 11.00 lbs
Shipping Dimensions 34 x 9 x 6 in

Ships Same Day





Beam Pattern

Combo (Spot/Flood)

LED Chip


Output Color

Pure White


Dual Row


1 Year


All of the LED auxiliary lights and LED light bars from TOTRON have gone through years of extensive research and testing. Each and every one is an TOTRON exclusive product using the best materials available, giving you the best quality lighting there is.

See more on how TOTRON LED lighting differs from the rest here

-Shatterproof Polycarbonate Lens

-IP68 Waterproof Rating

-Variable Input Voltage: 10 – 30V

-Genuine CREE LED Chips Inside

-PWM Thermal Heat Management Regulation

-Instant On/Off: No Warm Up Time
