Product Description

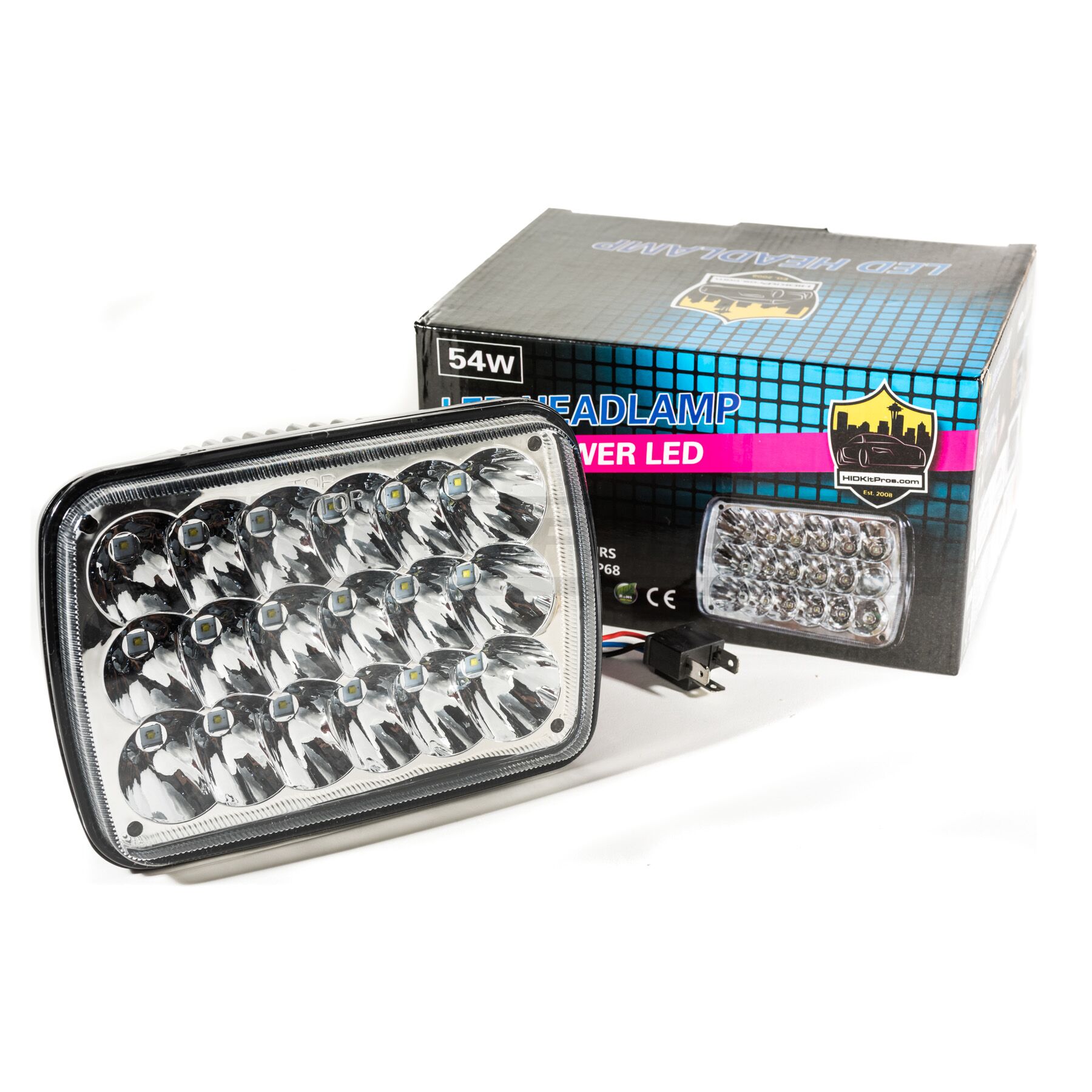

Upgrade – HKP™ 5×7 Bi-LED plug and play headlamps replace your sealed beam headlights to LED with a high output CREE 54 watt LED headlight replacement. Instant on/off so no warm up time necessary for full brightness. These are the third generation, watch out for the older 45W systems that had major issues with LED’s burning out, water entering housings, etc. The third generation headlights feature military grade breathers allowing the LED chips and driver to remain cool while keeping water, moisture and debris out.
Ease – The housings feature high and low functionality which means they have the 3 prongs on them; ground, low beam power and high beam power. They can be hooked up as a high and low switching, low beam only or high beam only. Easily remove/re-pin or change the polarity by simply unclipping each connector and moving it to the appropriate spot.
Installation – Direct bolt-on replacement for the stock unit; requires no modification (some vehicles require modification i.e. headlamp bucket/wire configuration)- 100% plug-and-play H4/9003 industry standard plug. Need to change the pin/wire configuration? Easily do so with our H4 adapters found here. Low beams will provide the row of LED’s and 2 LED chips on the second row to be lit whereas the high beams light up all LED diodes inside the housing.
Trusted – For over a decade, HID Kit Pros in Bellevue, WA has been providing customers with the best quality automotive lighting and accessories while backing it up with unbeatable customer service. Every employee at HKP has been trained on our wide selection of products to help suit each and every customers needs. Local? Stop by our showroom and installation center, test out our products in person with our state of the art testing equipment. Have a question? Contact us.
Specifications –
Wattage Output: 54W
LED:
- Brand – CREE
- Quantity – 18x
- Wattage – 3W per chip
Input Voltage: DC 10 – 30V
Color Temperature: 5,500K – Pure White
Lumens:
- 3,500 – Low Beam (stock bulb is 700)
- 4,050 – High Beam (stock bulb is 900)
Waterproof Rate: IP 68
Current Draw (amperage):
-
4.50A @ 12V
-
2.25A @ 24V
Housing: Die-Cast Aluminum
Lens: Crystal Clear Polycarbonate
Warranty: 1 Year
Certifications: CE, RoHS and EMC Certified
Beam Pattern: Flood (headlight) Beam – 60 Degree Angle
Replaces: 7″ Square – H6054, H6054ST, H6054XV, H6052, 6053, 6052
Depth: 3.66 in. (from back to front of lens)
Wire Configuration (can easily be changed):
- Black = Ground/Negative
- Red = Low Beam Power
- Blue = High Beam Power
Sold: Individually
