HYLUX Premium D2S D2R Xenon HID System

From: $139.95


Product Description

Package Deal – We have put together a D2S & D2R OEM HYLUX HID system using the best quality components possible from the wiring to the Morimoto HID bulbs and HYLUX ballasts, you will wish you had made the upgrade to xenon lighting technology sooner.


HYLUX Ballasts – HYLUX has gained the reputation over the years of having the longest lasting and most reliable aftermarket HID ballasts which is why we choose the best to put together a long lasting kit without breaking the bank. Choose between 35W quick start amp (A2088), 50W quick start amp (A0050) or the new D2 ballasts (D2A2088) which feature D2 outputs and do not require extra pigtails or adapters to convert from standard amp connections.

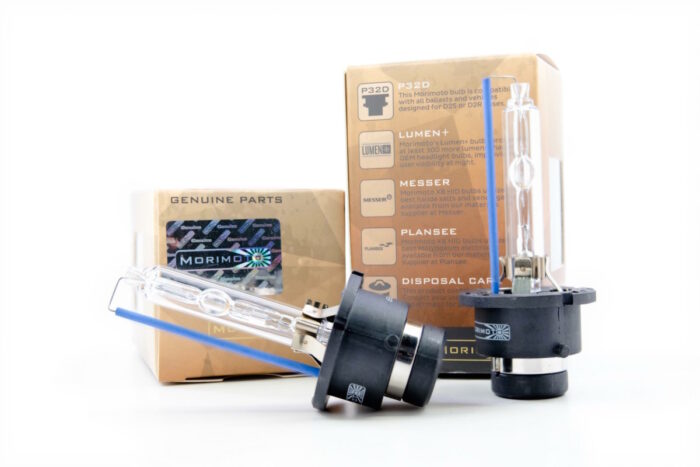

HID Bulbs – At the heart of the XB D2S bulbs is their perfectly aligned 100% Philips Quartz glass that houses a capsule from APL-USA. Using high quality halide salts from German-supplier Messer; the bulbs produce nearly the same luminosity (intensity) as the amazing Osram CBI bulbs at 5500K. No, you’re not seeing things here, but yes you will be seeing everything at night!


Options – A 35 watt HID system is what you will find standard on many high end vehicles like BMW, Audi, etc. For longevity and true kelvin ratings, we recommend sticking with a 35W system as they have the longest warranty and are have the longest rated lifespan. If you do a lot of night driving, the upgrade to a 50 watt system is an option, as a general guideline, the following applies for all 50 watt kits: 20% increase in light output, 20% decrease in lifespan (as they burn hotter than 35W) and -1000k in (K) kelvin (color). Note, the D2A2088 ballasts only come in a 35W output option.


Wiring – The Morimoto HD Relay Harness features an all-new completely sealed double 40A Relays, 14 gauge stranded copper wire wrapped in durable black tech-flex mesh that looks like a factory harness once installed. No cutting or splicing here: there are only five connections and they’re all plug-n-play. The optional wiring pigtails are only required for A2088 or A0050 ballasts, straight or 90 degree angled options available to fit your application.


CAN-Bus Compatible – The optional Standalone Canbus harness substitute is recommended for European vehicles that display “bulb out” error messages. They contain a series of capacitors and resistors to trick the car into thinking nothing has changed and help you avoid annoying lamp-out warnings on the dash.


Trusted – For over a decade, HID Kit Pros in Issaquah, Washington has been providing customers with the best quality automotive lighting and accessories while backing it up with unbeatable customer service. Every employee at HKP has been trained on our wide selection of products to help suit each and every customers needs. Local? Stop by our showroom and installation center, test out our products in person with our state of the art testing equipment. Have a question? Contact us.


Wattage Output: 35W or 50W

Rated Lifespan: 2,500 hours

Ballast Input: DC 9 – 32V

Ballast Draw: < 4.5A @ 12V DC


  • 35W – 3 Years
  • 50W – 1 Year

Lumens (per bulb):

  • 3000k – Golden Yellow: ~ 2,800
  • 4500k – Warm White: ~ 3,500
  • 5500k – Pure White: ~ 3,400
  • 6500k – Cool White: ~ 3,200


What’s Included

  • Ballasts: 2x HYLUX Premium Ballasts
  • Bulbs: 2x Morimoto D2S or D2R Bulbs
  • Wiring: 2x D2 Pigtails (Straight) or (90 Degree)
  • Relay: 1x Morimoto HD RelayOptional
  • Warranty: 3 Years for 35W / 1 Year for 50W
  • Misc: Bulb Cleaning Pad
  • Installation: Manual (found here)


  • HID Ballasts: For 9 – 24V Electrical Systems
  • HID Bulbs: Select from drop-down above
  • Don’t know? Find my size!


Sylvania Bulb Guide

Additional Information

Weight 0.01 lbs
Shipping Dimensions 9 x 7 x 5 in

35 Watt (Standard), 50 Watt

HID Bulb Type

D2R, D2S

HID Color

4500k, 5500k, 6500k



Color Options


  1. :

    got these as part of a kit for my 2018 4runner and also previous truck (tundra), these are rock solid ballasts, look good, perform well and havent had a single issue (ebay junk one would turn on and then the other). They are definitely pricer than i used to pay off amazon but i wont go back to cheap junk after these, do it once, do it right and i never have to mess with the wifes headlights again.

  2. :

    Replaced my XB35 ballasts from morimoto with hylux after reading all the poor reviews about morimoto recently, best decision i have made. always turn on, even in neg. temps in Alaska. no annoying loud buzzing. quality ballasts, much happier with these.
