H3: Morimoto 2Stroke 2.0 LED Kit

From: $50.00

Morimoto

LED Kit

Clear

Pigtail Adapter × 2

Clear

DRL Anti-Flicker Set (Pair) – optional

Clear

Product Description

Dime a Dozen: Everybody wants H3 LED headlight bulbs today, but for all the wrong reasons. The diverse marketing tactics and the numbers war that’s pushed onto ill-advised consumers is only getting more and more amusing to guys like us who actually know better. 100W? 10,000 lumens? Top-secret LED chip formula with seemingly exotic blend of rare materials or fancy coatings? Cool story, bro, but how do they actually work on the road at night? Isn’t that what headlights are for?



2Stroke 2.0: Despite the fact that we haven’t really had anything to offer in this niche, well, at least without risking our reputation selling our customers something that we truly didn’t believe in: We respect the fact that Morimoto stood on the sidelines for so long, simply learning from everybody else’s mistakes. In testing the brand-new 2Stroke 2.0 system side by side with a multitude of other designs, we finally became excited about LED headlight bulbs for the first time. Against the odds and certainly our expectations; seeing is believing and we agree they actually work pretty darn well! Here’s why.



Safety: You won’t be putting yourself at risk while driving at night with the 2Stroke Bulbs. Prior to this, we could only ever comfortably recommend LED bulbs for use as auxiliary lighting, high beams, fog lights, etc. Here, we test a lot of automotive lighting products. (really, a lot) Until now, there were literally no options that would translate their luminosity out onto the road into a useful-enough beam pattern (and measured lux at a distance) to really call adequate for on-road use. The optics for the H3 2Stroke bulbs are unique compared to other sizes in the range in order to produce the best possible results in H3 headlights.



Modern: Relative to the original 2Stroke that used massive & powerful CREE XHP50 LED chips, the updated 2.0 version now employs the latest and greatest Z ES chips from Philips Lumileds. Their small footprint allows for maximum lumen density and precision perfection when it comes to the bulbs ability to re-create the output of the original halogen bulbs they replace. Many other LED headlight bulbs are now using small LED chips lined up in a row, but nothing compares to the Philips Z ES.



Daytime Running Lights: The vast majority of other LED headlight bulbs are powered by drivers that flicker, flash, or simply wont turn on when powered by a low voltage DRL (daytime running light) circuit. The 2Stroke 2.0 works like a charm here, behaving as it should and simply running at a lower intensity.

  • NOTE: For vehicles with PWM (Pulse Width Modulation) based daytime-running-lights, the 2Stroke 2.0 will flicker. The optional Anti-Flicker Links will prevent this.



Pretty Cool: Heat management is crucial for lumen maintenance and reliability. The 2Stroke bulb’s internally opposed 1.5mm copper boards extract as much heat as possible from the area surrounding the LED chips and transfers it to the radiator at the back of the bulb. The one-piece radiator housing is CNC machined from 6061 aluminum, and conceals a magnetic levitating fan inside. This is the most compact way to house an effective yet compact cooling system.



Size Matters: Due to the extra depth of most LED bulbs, they won’t fit inside headlights with solid plastic rear housing caps. The 2Stroke 2.0 is undoubtedly one of the most compact (yet still actively cooled) LED Bulbs on the market. Morimoto paid much attention to this throughout development, and it’s not such an easy task given the need to balance size, power input to the LED chips, and thermal management to keep them running within safe range.



Trusted: For over a decade, HID Kit Pros in Issaquah, Washington has been providing customers with the best quality automotive lighting and accessories while backing it up with unbeatable customer service. Every employee at HKP has been trained on our wide selection of products to help suit each and every customers needs. Local? Stop by our showroom and installation center, test out our products in person with our state of the art testing equipment. Have a question? Contact us.





What’s Included

  • LED Bulbs: 2x Morimoto 2Stroke 2.0

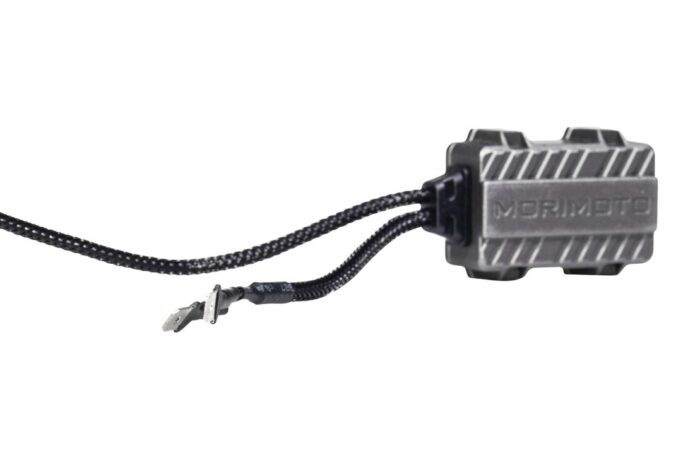

  • LED Drivers: 2x Morimoto 2S2 Regulators
  • Wiring: H1/H3 Plug n Play Input Adapters
  • Warranty: 3 Years

Compatibility

  • Not Sure?: Find my size!
  • Headlights: H3
  • Daytime Running Lights: 4V-9V non-pulsed

Technical

  • LED Emitters: 6x Philips Lumileds Z ES per bulb
  • Kelvin: 5700K
  • Intensity: 2440lm (raw; per bulb)
  • Input Power: 23W (per bulb)
  • Input Voltage: 6-18V DC
  • Amperage: 1.9A 12V DC

Additional Information

Weight 0.01 lbs
Shipping Dimensions 8 × 6 × 4 in
Shipping

Ships Same Day

Warranty

3 Years

Brand

Morimoto

LED Bulb Type

H3

LED Chip

Philips

Sold

As a Pair

LED Color

Pure White
