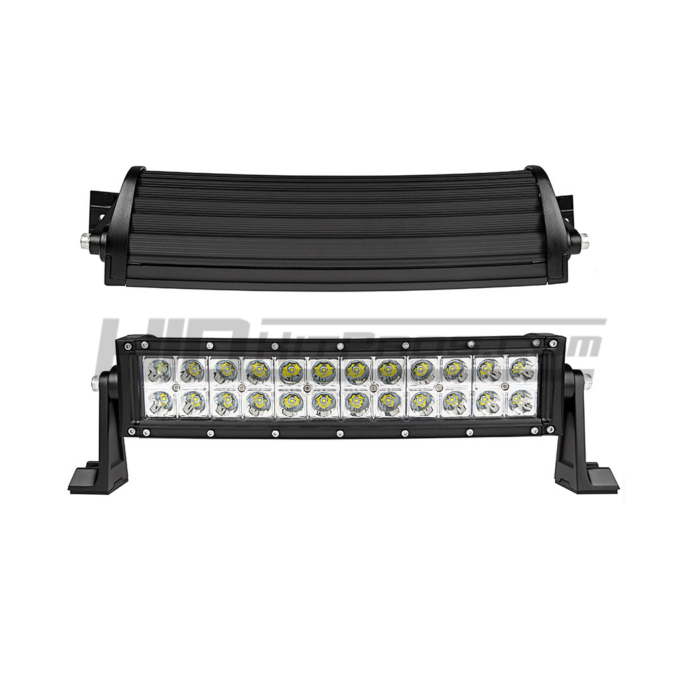

TOTRON 12″ DCX Series Curved LED Light Bar – TLB3072X



Add Plug-and-Play Wiring Harness? *

Search Part # THS311D16 for more information.

Product Description

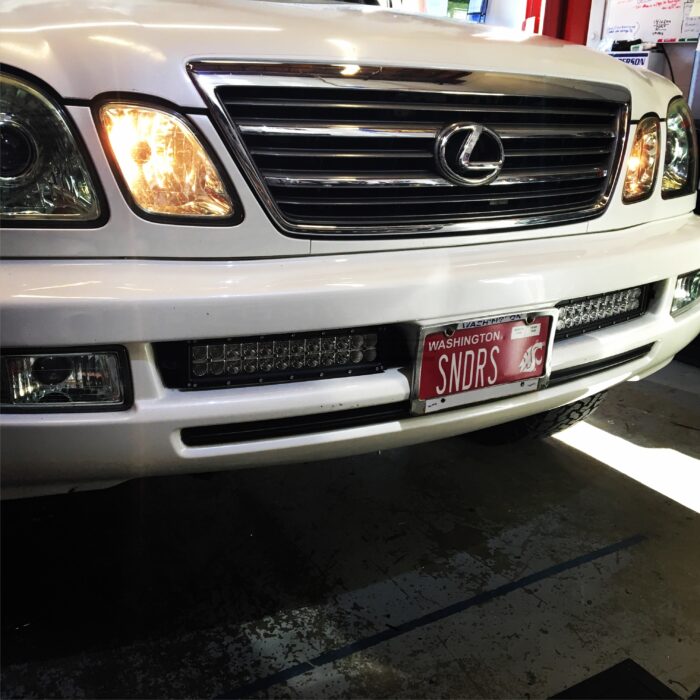

Built – TOTRON’s TLB3072X 12 inch curved LED light bar mimics the natural curve of most bumpers and front bars found on ATV, UTV, trucks and SUVs. With a combination of spot and flood beam pattern and our curved bar, you can focus on not only whats ahead put also to the sides with this high output CREE light bar.


Powerful – 72 Watt – 24 x 3Watt high power CREE LEDs in a double row array. IP68 waterproof light with 10-30V operating voltage range. Black painted aluminum housing with integral heat-sink and poly-carbonate lens. Includes full 360 degree adjustable angle aluminum mounting feet on bar ends.


TOTRON – Check out the “Why TOTRON?” tab above to see why you should choose TOTRON over an eBay light bar. From extensive testing and research to the final stages of assembly and powder coating, TOTRON is the name you trust in LED lighting.


Trusted – For over a decade, HID Kit Pros in Issaquah, Washington has been providing customers with the best quality automotive lighting and accessories while backing it up with unbeatable customer service. Every employee at HKP has been trained on our wide selection of products to help suit each and every customers needs. Local? Stop by our showroom and installation center, test out our products in person with our state of the art testing equipment. Have a question? Contact us.


Output Power (wattage): 72W

Input Voltage: DC 10 – 30V

Lumens: 5,760

Waterproof Rate:  IP 68

Current Draw (amperage):

  • 4.40A @ 12V
  • 2.20A @ 24V

Housing: Die-Cast Aluminum


  • Brand – CREE
  • Quantity – 24x Chips
  • Wattage – 3W Per Chip

Lens: Polycarbonate

Mounting Brackets: 304 Stainless Steel (included)

Beam Pattern Options (read more): Combo – Both Spot & Flood

Dimensions: Detailed sizes found here

  • 14.25 x 3.41 x 3.1 in.

Sold: Individually

Additional Information

Weight 6.0 lbs
Shipping Dimensions 19 x 6 x 6 in

Ships Same Day





Beam Pattern

Combo (Spot/Flood)

LED Chip


Output Color

Pure White


Dual Row


1 Year

Why HID Kit Pros?

All of our LED auxiliary lights and light bars have gone through years of extensive research and testing. Each and every one is an HID Kit Pros exclusive using the best materials available, giving you the best quality lighting there is.

See more on how our LED lighting differs from the rest here

-Shatterproof Polycarbonate Lens

-IP68 Waterproof Rating

-Variable Voltage: 10 – 30V

-Genuine CREE LED Chips Inside

-PWM Thermal Heat Management Regulation

-Instant On/Off: No Warm Up Time


Be the first to review “TOTRON 12″ DCX Series Curved LED Light Bar – TLB3072X”
