TOTRON 30″ DC Series LED Light Bar – TLB3180

From: $279.95


Product Description

Perform – The TOTRON TLB3180 DC Series 30 Inch Dual Row LED light bars are perfect fitment for many front bumpers, grilles and those looking to put a light bar on your RAZR or other off-road vehicle. Turn night into day with a powerful floodlight / spotlight combo and give your car, truck or SUV the aggressive look you’ve always imagined.


Output – With a mind-blowing 14,000+ Lumens and 180 Watts of raw power pumping through 60 individual, genuine Cree LED chips, this 30-inch light is one powerful lighting solution to say the least. The immense amount of light output allows you to put these light bars through hell and back without worrying about a filament burning out or water getting into the housings.


Built – Fully waterproof design allows for this light bar to be put to the test in virtually any and every application you throw at it. We have had customers install these as shop lights, on fishing boats, off road cars and trucks and more!


TOTRON – This rugged 30-inch dual row light bar features a durable die-cast aluminum housing and boasts an IP67 waterproof and dust-proof rating. The LED light bar also features CE, RoHS and EMC certifications. TOTRON is a well known name in the aftermarket lighting industry. They are commonly known as the Rigid light bars without the Rigid price tag. Read more on why TOTRON bars will out shine and outlast the competition by clicking on the “Why TOTRON?” tab above.


Options – Aside from the light bar, we’ve put together options from making installation easier to securing your bar and a convenient wireless remote. Make installation a breeze with a pre-wired, plug and play wiring harness with waterproof fuse holder, loomed wire, relay and waterproof connectors. Choose between a single output harness which powers one light bar or a dual output harness if you plan to run two light bars off of one harness and switch. Security hardware (1x lock and 2x security bolts) can be added to prevent someone with a common allen wrench from stealing your new light bar; protect your investment. A wireless remote is plug and play when using a TOTRON harness and features wireless on/off, strobe, SOS and more, all from a compact wireless remote.


Trusted – For over a decade, HID Kit Pros in Issaquah, Washington has been providing customers with the best quality automotive lighting and accessories while backing it up with unbeatable customer service. Every employee at HKP has been trained on our wide selection of products to help suit each and every customers needs. Local? Stop by our showroom and installation center, test out our products in person with our state of the art testing equipment. Have a question? Contact us.


Power Output (wattage): 180W

Input Voltage: DC 10 – 30V

Lumens: 14,400 – 19x the brightness of a standard headlamp

Waterproof Rate:  IP 68

Current Draw (amperage):

  • 12.70A @ 12V
  • 5.70A @ 24V

Housing: Die-Cast Aluminum


  • Brand – CREE
  • Quantity – 60x
  • Wattage – 3W per chip

Lens: Polycarbonate (covers found here)

Mounting Brackets: 304 Stainless Steel (included)

Beam Pattern Options (read more here): Combo – Both Spot & Flood Beam

Dimensions: Detailed specs found here

Sold: Individually

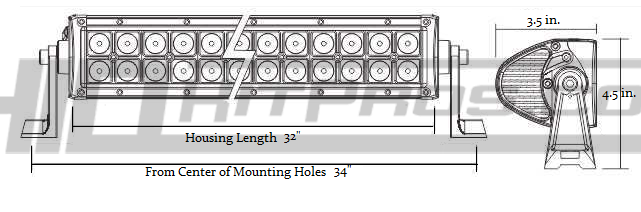

32 Inch 180 Watt CREE LED Off Road Light Bar Dimensions

Additional Information

Weight 0.01 lbs
Shipping Dimensions 36 x 6 x 6 in

Ships Same Day



Beam Pattern

Combo (Spot/Flood)



Output Color

Pure White


1 Year

LED Chip



Dual Row


All of the LED auxiliary lights and LED light bars from TOTRON have gone through years of extensive research and testing. Each and every one is an TOTRON exclusive product using the best materials available, giving you the best quality lighting there is.

See more on how TOTRON LED lighting differs from the rest here

-Shatterproof Polycarbonate Lens

-IP68 Waterproof Rating

-Variable Input Voltage: 10 – 30V

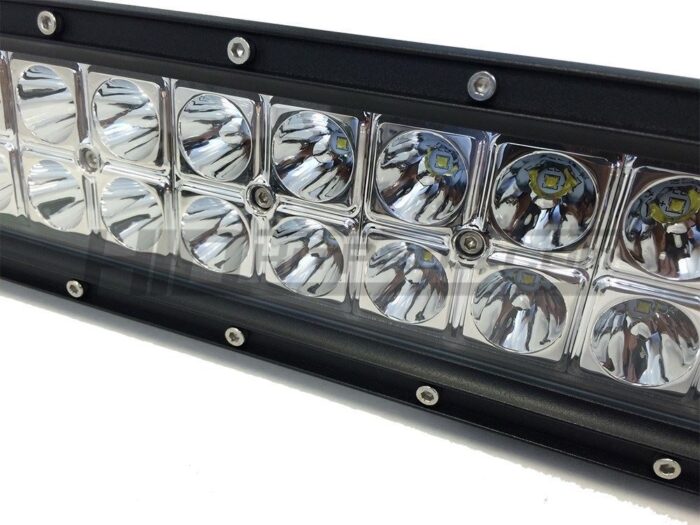

-Genuine CREE LED Chips Inside

-PWM Thermal Heat Management Regulation

-Instant On/Off: No Warm Up Time
