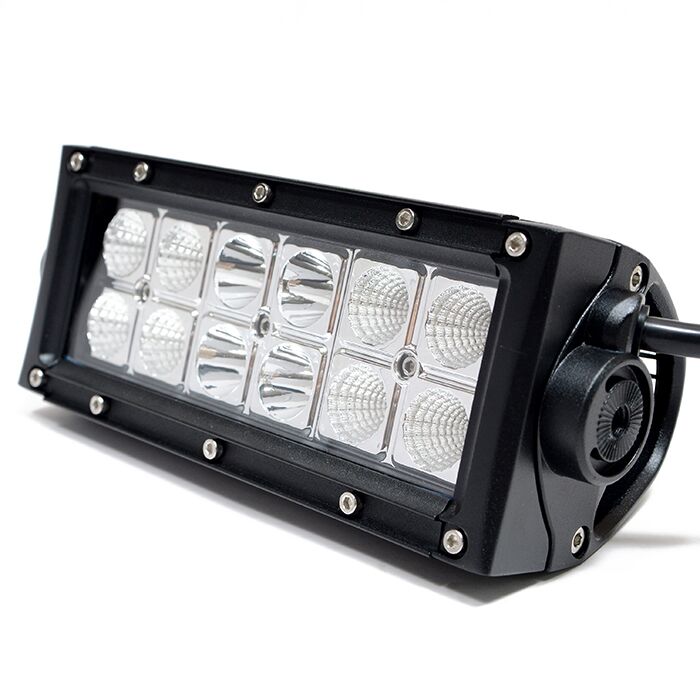

TOTRON 6″ DC Series LED Light Bar – TLB3036



Add Plug-and-Play Wiring Harness? *

Add a single output harness to power 1x light bar or a dual output harness to power 2x light bars with one harness. Search Part #THS312D16 (dual output) or part #THS311D16 (single output) for more information.

Product Description

Compact – Being the smallest of the TOTRON DC Series LED Light Bars, at 36 watts and a total length of roughly 8 inches long, you are still getting almost 3,000 lumens. That is crazy light output when comparing to a stock headlight bulb in a vehicle that produces between 700 and 900 lumens!


Instant Light – There is no warm up or filament to burn out with these high powered LED lights. Our customers find these the perfect size to fit into bumpers, snow plows and many more applications.


Mounting – Easily mounted to virtually any surface with included mounting hardware and anti-vibration pads. Easily wire into a 12v source directly or add-on a TOTRON plug and play wiring harness, there is no better option out there for the price and size.


Well-Built – TOTRON light bars are built to the exact same specifications to those of Rigid Industries and other higher priced bars at over half the price!


Trusted – For over a decade, HID Kit Pros in Issaquah, Washington has been providing customers with the best quality automotive lighting and accessories while backing it up with unbeatable customer service. Every employee at HKP has been trained on our wide selection of products to help suit each and every customers needs. Local? Stop by our showroom and installation center, test out our products in person with our state of the art testing equipment. Have a question? Contact us.


Read more about the TLB3036 TOTRON 6″ LED Light Bar


Output Power (wattage): 36W

Input Voltage: DC 10 – 30V

Lumens: 2,880

Waterproof Rate: IP 67


  • Brand – CREE
  • Quantity – 12x
  • Wattage – 3W per chip

Current Draw (amperage):

  • 2.20A @ 12V
  • 1.20A @ 24V

Housing: Die-Cast Aluminum

Lens: Polycarbonate (covers found here)

Mounting Bracket: 304 Stainless Steel (included)

Certifications: EMC, CE and RoHS Certified

Beam Pattern (read more):

  • Flood – 90 Degree Angle
  • Spot – 8 Degree Angle
  • Combo – Flood and Spot

Sold: Individually

Dimensions: Detailed specs found here

6 Inch 36 Watt CREE LED Off Road Light Bar Dimensions

Additional Information

Weight 6.0 lbs
Shipping Dimensions 13 x 6 x 6 in

Ships Same Day





Beam Pattern

Combo (Spot/Flood), Flood, Spot

LED Chip


Output Color

Pure White


1 Year


Dual Row


All of the LED auxiliary lights and LED light bars from TOTRON have gone through years of extensive research and testing. Each and every one is an TOTRON exclusive product using the best materials available, giving you the best quality lighting there is.

See more on how TOTRON LED lighting differs from the rest here

-Shatterproof Polycarbonate Lens

-IP68 Waterproof Rating

-Variable Input Voltage: 10 – 30V

-Genuine CREE LED Chips Inside

-PWM Thermal Heat Management Regulation

-Instant On/Off: No Warm Up Time
