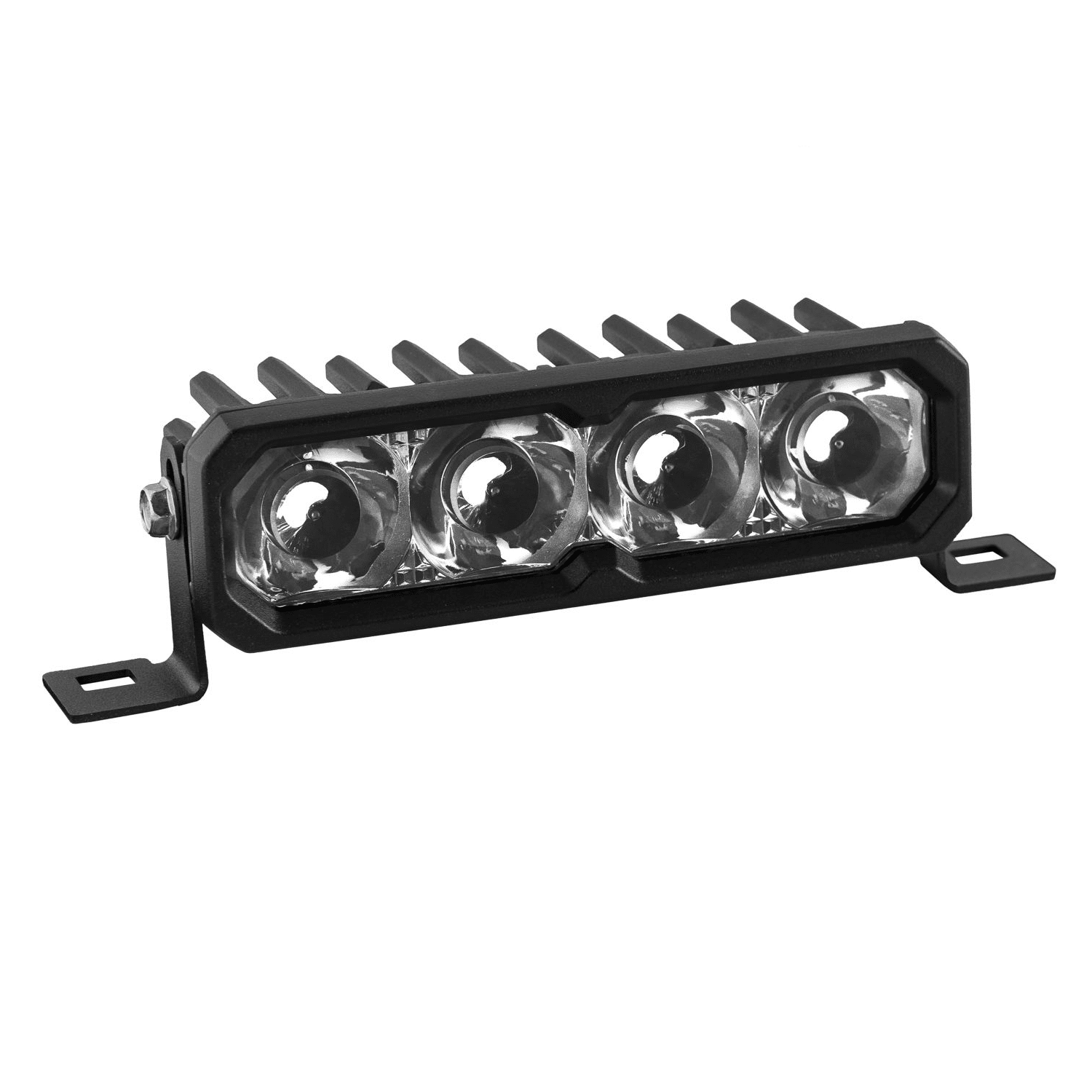

Diode Dynamics SS6 Stage Series 6″ Light Bar

$79.95

Diode Dynamics
Clear

Add Wiring Harness? *

Light Duty Dual Output Switch Harness

Product Description

Introducing STAGE SERIES LED lighting! Inspired by the needs of a professional rally driver, these light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package.

First, we started with a narrow-profile extruded housing, to allow fitment in small and tight areas. At less than 42mm tall, they’ll fit in many places a traditional dual-row light bar won’t, while drastically cutting the total weight as well.

But the compact size doesn’t mean they’re short on power! Thanks to the high-intensity Lumileds LED chips, coupled with our U.S. PATENT PENDING total internal reflection (TIR) optic, the total intensity of the Stage Series is far higher than a standard, generic light bar using basic optics or reflectors. Standard optics lose light internally, and to glare, spreading a little bit of light in every direction. Instead, the TIR optic in the Stage Series collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

This TIR optic was designed with optical simulation modelling, to shape the output in a highly-functional beam pattern. Rather than a simple “spot” pattern, the Stage Series has a rectangular Driving pattern, far more useful for directing light downrange at high speeds. And instead of a standard “flood,” the Wide option provides an extremely wide field of view, without wasting any light in the sky above. These light bars provide light where you want it, and don’t shine where you don’t.

Want even more flexibility? Select Driving beam, and you can purchase simple clip-on lenses to create a Wide or Spread pattern (Coming soon!). Designed for quick changes during staged rally racing, this allows you to get the output you need at a moment’s notice, with zero tools required. Inner lenses are also available for purchase if you’d like a more permanent change to your optics.

Not just off road! In six-inch size, when installed as a pair and aimed in accordance with your state’s regulations, the Driving pattern meets SAE J581 as a Driving/Auxiliary High Beam Light, and the Wide pattern meets SAE J583 as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

All Stage Series LED lighting products use a standard Deutsch-style connector, and come with a 1-foot pigtail, with bare leads. You can wire yourself, or select an optional wire harness.

Diode Dynamics is pleased to offer a limited 8 year warranty on all Stage Series products.

SPECIFICATIONS
Total Power: 26.6 watts
Current Draw: 1.9 amps @ 14V
Peak Intensity: 47,000 candela
Intensity @ 10m: 470 lux (Driving)
Raw Output: 2280 lumens
Measured Output: 1400 lumens
Output Color: 6000K Crisp White
Total Dimensions: See images above.
Weight: 1.3 lbs
Connector: Deutsch DT

Additional Information

Weight 3.50 lbs
Shipping Dimensions 10 x 4 x 5 in
Shipping

Ships Same Day

Sold

Individually

Brand

Diode Dynamics

Beam Pattern

Flood, Spot

LED Chip

Philips

Output Color

Amber, Pure White

Warranty

8 Years

Rows

Dual Row

Why HID Kit Pros?

All of our LED auxiliary lights and LED light bars have gone through years of extensive research and testing. Each and every one is an HID Kit Pros exclusive using the best materials available, giving you the best quality lighting there is.

See more on how our LED lighting differs from the rest here

-Shatterproof Polycarbonate Lens

-IP67 Waterproof Rating

-Variable Voltage: 10 – 30V

-3W Genuine CREE LED Chips Inside

-PWM Thermal Heat Management Regulation

-Instant On/Off: No Warm Up Time
