Product Description

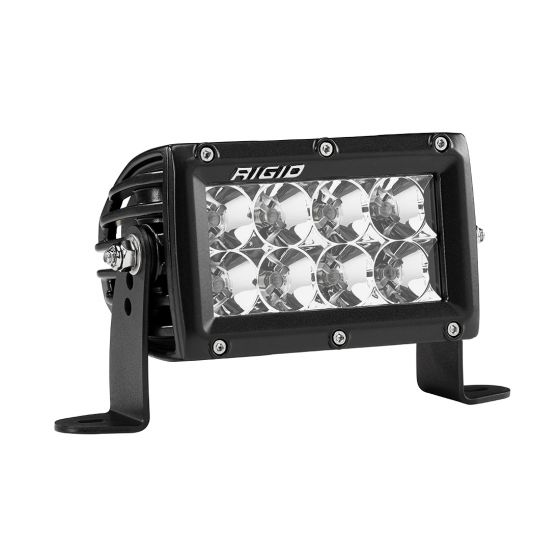

The E-Series is one of RIGID’s most versatile, all-around lighting solutions, and recent enhancements in LED technology delivering up to 111% more raw lumens than ever before with the E-Series PRO. Among RIGID’s most popular product lines, the E-Series PRO has recently benefited from several upgrades to improve both looks and performance. Plus, new branding and new blacked-out circuit boards give the E-Series PRO a more refined look. Available with your choice of optics, the E-Series features a host of beam options, including Spot, Flood, Driving, Hyperspot, Diffused, and new Driving/Spot and Spot/Hyperspot combinations. These and other innovations make it one of the brightest and most efficient LED light bars on the market. The E-Series was born in off-road, but its versatility makes it well suited for use with power sports, marine, general automotive and even first responder applications.
Features:
- Blacked-Out Circuit Board
- GORE® Pressure Equalizing Vent
- Harness & Switch Included (Exclusions Apply)
- High-Grade Aluminum Alloy Heatsink
- IP68 Compliant -Dust / Water Ingress
- 50,000+ Hour Lifespan
- 9-36 V DC
- Patented Technology
- Impact Resistant Polycarbonate Lens
- Integrated Thermal Management System
Includes:
- 2 Black Powder Coated, L-shape brackets
- Deutsch Connector (4”-10”)
- Open Leads, No Connector (20”-50”)
- Harness w/Switch
Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | Voltage Max | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | Horizontal Beam Angle |
---|---|---|---|---|---|---|---|---|---|---|---|
4″ | 893613 | 4.00 | DRIVING | 90 | 6.43 | 36 | 9504 | 546.00 | 234.00 | 467.00 | 49.30 |
4″ | 173613 | 4.00 | DRIVING | 90 | 6.43 | 36 | 9504 | 546.00 | 234.00 | 467.00 | 49.30 |
6″ | 895613 | 4.00 | DRIVING | 160 | 11.43 | 36 | 14256 | 828.00 | 288.00 | 575.00 | 49.50 |
6″ | 175613 | 5.00 | DRIVING | 160 | 11.43 | 36 | 14256 | 828.00 | 288.00 | 575.00 | 49.50 |
6″ | 17562 | 5.00 | DRIVING | 36 | |||||||
10″ | 898613 | 4.00 | DRIVING | 204 | 14.57 | 36 | 18810 | 960.00 | 310.00 | 320.00 | 50.60 |
10″ | 178613 | 5.00 | DRIVING | 204 | 14.57 | 36 | 18810 | 960.00 | 310.00 | 620.00 | 50.60 |
20″ | 822613 | 9.00 | DRIVING | 340 | 24.30 | 36 | 47520 | 2132.00 | 462.00 | 924.00 | 49.00 |
20″ | 121613 | 9.00 | DRIVING | 340 | 24.30 | 36 | 47520 | 2132.00 | 462.00 | 924.00 | 49.00 |
4″ | 893513 | 4.00 | DRIVING DIFFUSED | 92 | 6.57 | 36 | 9504 | 56.00 | 75.00 | 150.00 | 94.80 |
4″ | 173513 | 4.00 | DRIVING DIFFUSED | 92 | 6.57 | 36 | 9504 | 56.00 | 75.00 | 150.00 | 94.80 |
6″ | 895513 | 4.00 | DRIVING DIFFUSED | 153 | 10.93 | 36 | 14256 | 82.00 | 90.00 | 181.00 | 93.90 |
6″ | 175513 | 4.00 | DRIVING DIFFUSED | 153 | 10.93 | 36 | 14256 | 82.00 | 90.00 | 181.00 | 93.90 |
10″ | 898513 | 4.00 | DRIVING DIFFUSED | 206 | 14.71 | 36 | 18810 | 108.00 | 104.00 | 208.00 | 93.10 |
10″ | 178513 | 5.00 | DRIVING DIFFUSED | 206 | 14.71 | 36 | 18810 | 108.00 | 104.00 | 208.00 | 93.10 |
4″ | 804113 | 4.00 | FLOOD | 61 | 4.36 | 36 | 6336 | 128.00 | 113.00 | 226.00 | 16.50 |
4″ | 104113 | 4.00 | FLOOD | 61 | 4.36 | 36 | 6336 | 128.00 | 113.00 | 226.00 | 50.00 |
4″ | 104122 | 4.00 | FLOOD | 36 | |||||||
6″ | 806113 | 4.00 | FLOOD | 80 | 5.71 | 36 | 9504 | 166.00 | 129.00 | 258.00 | 50.10 |
6″ | 106113 | 4.00 | FLOOD | 80 | 5.71 | 36 | 9504 | 166.00 | 129.00 | 258.00 | 50.10 |
6″ | 106122 | 4.00 | FLOOD | 36 | |||||||
10″ | 810113 | 5.00 | FLOOD | 185 | 13.21 | 36 | 15840 | 286.00 | 169.00 | 338.00 | 50.00 |
10″ | 110113 | 2.00 | FLOOD | 185 | 13.21 | 36 | 15840 | 286.00 | 169.00 | 338.00 | 50.00 |
10″ | 110122 | 5.00 | FLOOD | 36 | |||||||
20″ | 820113 | 9.00 | FLOOD | 214 | 15.00 | 36 | 25080 | 497.00 | 223.00 | 446.00 | 50.00 |
20″ | 120113 | 9.00 | FLOOD | 214 | 15.00 | 36 | 25080 | 497.00 | 223.00 | 446.00 | 50.00 |
20″ | 120123 | 6.00 | FLOOD | 36 | |||||||
30″ | 830113 | 12.00 | FLOOD | 311 | 22.00 | 36 | 32700 | 699.00 | 264.00 | 529.00 | 50.00 |
30″ | 130113 | 12.00 | FLOOD | 311 | 22.00 | 36 | 32700 | 699.00 | 264.00 | 529.00 | 50.00 |
40″ | 840113 | 16.00 | FLOOD | 299 | 21.00 | 36 | 35680 | 789.00 | 281.00 | 562.00 | 50.00 |
40″ | 140113 | 16.00 | FLOOD | 299 | 21.00 | 36 | 35680 | 789.00 | 281.00 | 562.00 | 50.00 |
50″ | 150113 | 19.00 | FLOOD | 377 | 27.00 | 36 | 44600 | 914.00 | 302.00 | 605.00 | 51.00 |
4″ | 804513 | 4.00 | FLOOD DIFFUSED | 61 | 4.36 | 36 | 6336 | 28.00 | 53.00 | 106.00 | 102.50 |
4″ | 104513 | 4.00 | FLOOD DIFFUSED | 61 | 4.36 | 36 | 6336 | 28.00 | 53.00 | 106.00 | 102.00 |
6″ | 806513 | 4.00 | FLOOD DIFFUSED | 81 | 5.79 | 36 | 9504 | 43.00 | 65.00 | 131.00 | 100.20 |
6″ | 106513 | 4.00 | FLOOD DIFFUSED | 81 | 5.79 | 36 | 9504 | 43.00 | 65.00 | 131.00 | 100.20 |
10″ | 810513 | 5.00 | FLOOD DIFFUSED | 172 | 12.29 | 36 | 15840 | 72.00 | 85.00 | 170.00 | 100.00 |
10″ | 110513 | 5.00 | FLOOD DIFFUSED | 172 | 12.29 | 36 | 15840 | 72.00 | 85.00 | 170.00 | 100.00 |
4″ | 173713 | 4.00 | HYPERSPOT | 40 | 2.90 | 36 | 3520 | 1920.00 | 438.00 | 876.00 | 5.10 |
6″ | 175713 | 4.00 | HYPERSPOT | 60 | 4.35 | 36 | 5280 | 2920.00 | 540.00 | 1081.00 | 9.00 |
10″ | 178713 | 5.00 | HYPERSPOT | 75 | 5.43 | 36 | 7500 | 3880.00 | 623.00 | 1246.00 | 9.50 |
20″ | 121713 | 9.00 | HYPERSPOT | 150 | 10.90 | 36 | 15000 | 7820.00 | 884.00 | 1769.00 | |
4″ | 804213 | 4.00 | SPOT | 61 | 4.36 | 36 | 6336 | 1396.00 | 374.00 | 747.00 | 16.50 |
4″ | 104213 | 4.00 | SPOT | 61 | 4.36 | 36 | 6336 | 1396.00 | 374.00 | 747.00 | 16.50 |
4″ | 104222 | 4.00 | SPOT | 36 | |||||||
6″ | 806213 | 4.00 | SPOT | 85 | 6.07 | 36 | 9504 | 2131.00 | 462.00 | 923.00 | 16.50 |
6″ | 106213 | 4.00 | SPOT | 85 | 6.07 | 36 | 9504 | 2131.00 | 462.00 | 923.00 | 16.50 |
6″ | 106222 | 4.00 | SPOT | 36 | |||||||
10″ | 810213 | 5.00 | SPOT | 168 | 12.00 | 36 | 15840 | 3368.00 | 580.00 | 1160.00 | 17.30 |
10″ | 110213 | 5.00 | SPOT | 168 | 12.00 | 36 | 15840 | 3368.00 | 580.00 | 1160.00 | 17.30 |
10″ | 110222 | 5.00 | SPOT | 36 | |||||||
20″ | 820213 | 9.00 | SPOT | 156 | 11.00 | 36 | 20344 | 5690.00 | 754.00 | 1509.00 | 14.00 |
20″ | 120213 | 9.00 | SPOT HYPERSPOT COMBO | 156 | 11.00 | 36 | 20344 | 5690.00 | 754.00 | 1509.00 | 14.00 |
30″ | 830213 | 12.00 | SPOT | 305 | 22.00 | 36 | 26708 | 8520.00 | 923.00 | 1846.00 | 14.00 |
30″ | 130213 | 12.00 | SPOT | 305 | 22.00 | 36 | 26708 | 8520.00 | 923.00 | 1846.00 | 14.00 |
40″ | 840213 | 16.00 | SPOT | 306 | 22.00 | 36 | 31080 | 9592.00 | 979.00 | 1959.00 | 14.00 |
40″ | 140213 | 16.00 | SPOT | 306 | 22.00 | 36 | 31080 | 9592.00 | 979.00 | 1959.00 | 14.00 |
50″ | 150213 | 19.00 | SPOT | 373 | 27.00 | 36 | 38620 | 9895.00 | 995.00 | 1989.00 | 14.00 |
10″ | 178313 | 5.00 | SPOT DRIVING COMBO | 174 | 12.43 | 36 | 19008 | 2285.00 | 478.00 | 956.00 | 27.70 |
20″ | 122313 | 9.00 | SPOT DRIVING COMBO | 319 | 23.00 | 36 | 34848 | 5480.00 | 740.00 | 1481.00 | 22.00 |
28″ | 127313 | 12.00 | SPOT DRIVING COMBO | 355 | 25.00 | 36 | 34880 | 5758.00 | 759.00 | 1518.00 | 26.00 |
30″ | 132313 | 11.00 | SPOT DRIVING COMBO | 470 | 34.00 | 36 | 37060 | 5932.00 | 770.00 | 1540.00 | 23.00 |
38″ | 137313 | 16.00 | SPOT DRIVING COMBO | 365 | 26.00 | 36 | 39248 | 6808.00 | 825.00 | 1650.00 | 24.00 |
40″ | 142313 | 16.00 | SPOT DRIVING COMBO | 370 | 30.00 | 36 | 41032 | 7127.00 | 844.00 | 1688.00 | 28.00 |
50″ | 152313 | 19.00 | SPOT DRIVING COMBO | 448 | 32.00 | 36 | 49952 | 7537.00 | 868.00 | 1736.00 | 22.60 |
6″ | 806313 | 4.00 | SPOT FLOOD COMBO | 82 | 5.86 | 36 | 9504 | 829.00 | 288.00 | 576.00 | 28.30 |
6″ | 106313 | 4.00 | SPOT FLOOD COMBO | 82 | 5.86 | 36 | 9504 | 829.00 | 288.00 | 576.00 | 28.30 |
6″ | 106322 | 4.00 | SPOT FLOOD COMBO | 36 | |||||||
10″ | 810313 | 5.00 | SPOT FLOOD COMBO | 165 | 11.79 | 36 | 15840 | 2003.00 | 448.00 | 895.00 | 19.10 |
10″ | 110313 | 5.00 | SPOT FLOOD COMBO | 165 | 11.79 | 36 | 15840 | 2003.00 | 448.00 | 895.00 | 19.10 |
10″ | 110322 | 5.00 | SPOT FLOOD COMBO | 36 | |||||||
20″ | 820313 | 9.00 | SPOT FLOOD COMBO | 214 | 15.00 | 36 | 25080 | 3898.00 | 624.00 | 1249.00 | 19.00 |
20″ | 120313 | 9.00 | SPOT FLOOD COMBO | 214 | 15.00 | 36 | 25080 | 3898.00 | 624.00 | 1249.00 | 19.00 |
20″ | 120323 | 9.00 | SPOT FLOOD COMBO | 36 | |||||||
28″ | 128313 | 12.00 | SPOT FLOOD COMBO | 243 | 17.00 | 36 | 30520 | 4219.00 | 650.00 | 1299.00 | 19.00 |
28″ | 128323 | 12.00 | SPOT FLOOD COMBO | 36 | |||||||
30″ | 830313 | 12.00 | SPOT FLOOD COMBO | 311 | 22.00 | 36 | 32700 | 4746.00 | 689.00 | 1378.00 | 19.00 |
30″ | 130313 | 12.00 | SPOT FLOOD COMBO | 311 | 22.00 | 36 | 32700 | 4746.00 | 689.00 | 1378.00 | 19.00 |
30″ | 130323 | 12.00 | SPOT FLOOD COMBO | 36 | |||||||
38″ | 138313 | 12.00 | SPOT FLOOD COMBO | 360 | 26.00 | 36 | 33896 | 4929.00 | 702.00 | 1404.00 | 19.00 |
38″ | 138323 | 16.00 | SPOT FLOOD COMBO | 36 | |||||||
40″ | 840313 | 16.00 | SPOT FLOOD COMBO | 299 | 21.00 | 36 | 35680 | 5134.00 | 716.00 | 1433.00 | 19.00 |
40″ | 140313 | 14.00 | SPOT FLOOD COMBO | 299 | 21.00 | 36 | 35680 | 5134.00 | 716.00 | 1433.00 | 19.00 |
40″ | 140323 | 16.00 | SPOT FLOOD COMBO | 36 | |||||||
50″ | 850313 | 19.00 | SPOT FLOOD COMBO | 377 | 27.00 | 36 | 44600 | 6308.00 | 794.00 | 1589.00 | 19.00 |
50″ | 150313 | 19.00 | SPOT FLOOD COMBO | 377 | 27.00 | 36 | 44600 | 6308.00 | 794.00 | 1589.00 | 8.30 |
50″ | 150323 | 19.00 | SPOT FLOOD COMBO | 36 |
