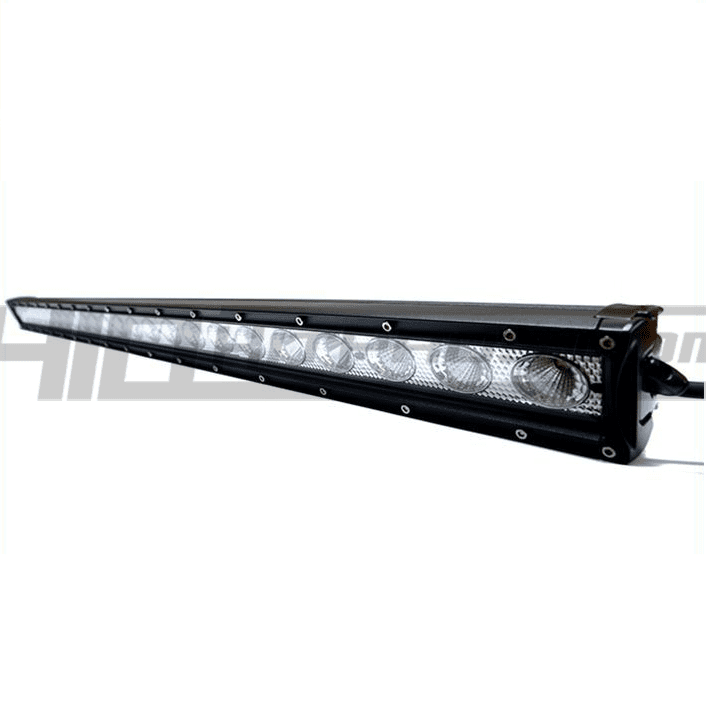

TOTRON 50″ SR Series Single Row LED Light Bar – TLB1150



Add Plug-and-Play Wiring Harness? *

Search Part # THS311A14 for more information.

Product Description

Powerful – The longest and most powerful single row LED light bar to hit the market is TOTRON’s 50″ SR series CREE Light Bar. Producing an astounding 12,000 lumens with 30 total CREE LED chips producing 5 watts each, you wont be searching for more light anytime soon!


Mounting – With TOTRON’s patented track mounting system, the search for the perfect size light bar is over. Easily mount your single row light bar to the dimensions you need by simply sliding the mounting feet to the proper location along the pre-drilled track before you tighten them down.


TOTRON – Check out the “Why TOTRON?” tab above to see why you should choose TOTRON over an eBay light bar. From extensive testing and research to the final stages of assembly and powder coating, TOTRON is the name you trust in LED lighting.


Trusted – For over a decade, HID Kit Pros in Issaquah, Washington has been providing customers with the best quality automotive lighting and accessories while backing it up with unbeatable customer service. Every employee at HKP has been trained on our wide selection of products to help suit each and every customers needs. Local? Stop by our showroom and installation center, test out our products in person with our state of the art testing equipment. Have a question? Contact us.


Power Output (wattage): 150W

Input Voltage: DC 10 – 30V

Lumens: 12,000


  • Chip – CREE
  • Wattage – 5W Per Chip
  • Quantity -30x

Waterproof Rate:  IP 67

Current Draw (amperage):

  • 12.50A @ 12V
  • 6.25A @ 24V

Housing: Die-Cast Aluminum

Lens: Polycarbonate (covers found here)

Certifications: CE, RoHS and EMC Certified

Mounting Bracket: 304 Stainless Steel (included)

Beam Pattern Options (read more):

  • Combo – Spot/Flood


  • Length – 48.43 in.
  • Width – 2.64 in.
  • Height – 2.27 in.

Sold: Individually

Additional Information

Weight 16.00 lbs
Shipping Dimensions 54 x 6 x 6 in

Ships Same Day





Beam Pattern

Combo (Spot/Flood)

LED Chip


Output Color

Pure White


1 Year


Single Row


All of the LED auxiliary lights and LED light bars from TOTRON have gone through years of extensive research and testing. Each and every one is an TOTRON exclusive product using the best materials available, giving you the best quality lighting there is.

See more on how TOTRON LED lighting differs from the rest here

-Shatterproof Polycarbonate Lens

-IP68 Waterproof Rating

-Variable Input Voltage: 10 – 30V

-Genuine CREE LED Chips Inside

-PWM Thermal Heat Management Regulation

-Instant On/Off: No Warm Up Time
