Product Description
Harnessing Unbeatable Distance

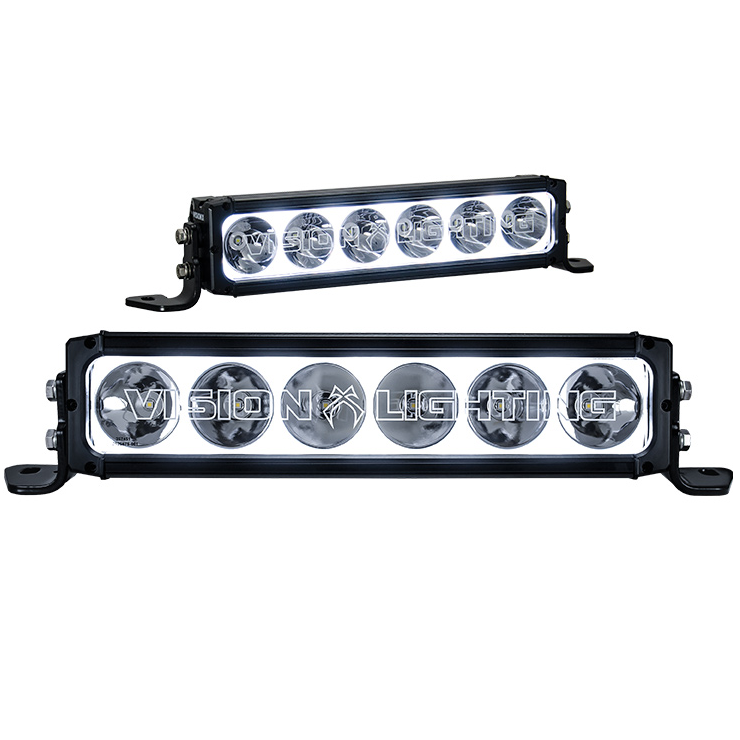

The XPR Light bar series provides a powerful distance light bar option, that has distance comparable to HID with all the benefits of LED. The XPR combines powerful 10 watt LEDs with IRIS reflector technology to outshine and outlast.
Dual Mounting Options
With dual mounting options of both end-cap mounting and patented mounting feet, this affordable light bar is the ultimate solution for your truck, Jeep, or ATV.
Prime Drive Technology
Prime Drive Technology from Vision X Lighting controls vital functions such as temperature control and dimming on your LED Light Bar. This advanced technology can increase or decrease the intervals at which the LEDs turn on and off in order to lower the bars overall temperature and maximize the lifespan.
Trusted
For over a decade, HID Kit Pros in Issaquah, Washington has been providing customers with the best quality automotive lighting and accessories while backing it up with unbeatable customer service. Every employee at HKP has been trained on our wide selection of products to help suit each and every customers needs. Local? Stop by our showroom and installation center, test out our products in person with our state of the art testing equipment. Have a question? Contact us.
Features
Type: 10-Watt
- 12″ – 51″ Lengths Available
- Long Distance Projection
- Up to 29,133 Raw Lumens
Specifications
| ITEM # | PART # | BEAM | LENGTH | # OF LEDs | RAW LUMENS | EFFECTIVE LUMENS | WEIGHT | INPUT VOLTS | WATTS | AMP DRAW |
| XPR-3 | 9891606 | Straight | 6? | 3 | 3,237 lm | 2,216 lm | 1.55 lb | 11-32V | 30 | 2.5A |
| XPR-6 | 9891613 | Straight | 11.50? | 6 | 6,474 lm | 4,431 lm | 2.84 lb | 11-32V | 60 | 5.0A |
| XPR-9M | 9891620 | Mixed | 19.00? | 9 | 9,711 lm | 6,648 lm | 4.65 lb | 11-32V | 90 | 7.5A |
| XPR-12M | 9891637 | Tilted LEDs | 24.00? | 12 | 12,948 lm | 9,064 lm | 5.24 lb | 11-32V | 120 | 10.0A |
| XPR-15M | 9891644 | Tilted LEDs | 29.40? | 15 | 16,185 lm | 11,330 lm | 6.05 lb | 11-32V | 150 | 12.5A |
| XPR-18M | 9891651 | Tilted LEDs | 34.70? | 18 | 19,422 lm | 13,595 lm | 7.67 lb | 11-32V | 180 | 15.0A |
| XPR-21M | 9891668 | Tilted LEDs | 40.00? | 21 | 22,659 lm | 15,861 lm | 9.01 lb | 11-32V | 210 | 17.5A |
| XPR-24M | 9891675 | Tilted LEDs | 45.30? | 24 | 25,896 lm | 18,127 lm | 9.67 lb | 11-32V | 240 | 20.0A |
| XPR-27M | 9891682 | Tilted LEDs | 50.60? | 27 | 29,133 lm | 20,393 lm | 10.90 lb | 11-32V | 270 | 22.5A |
