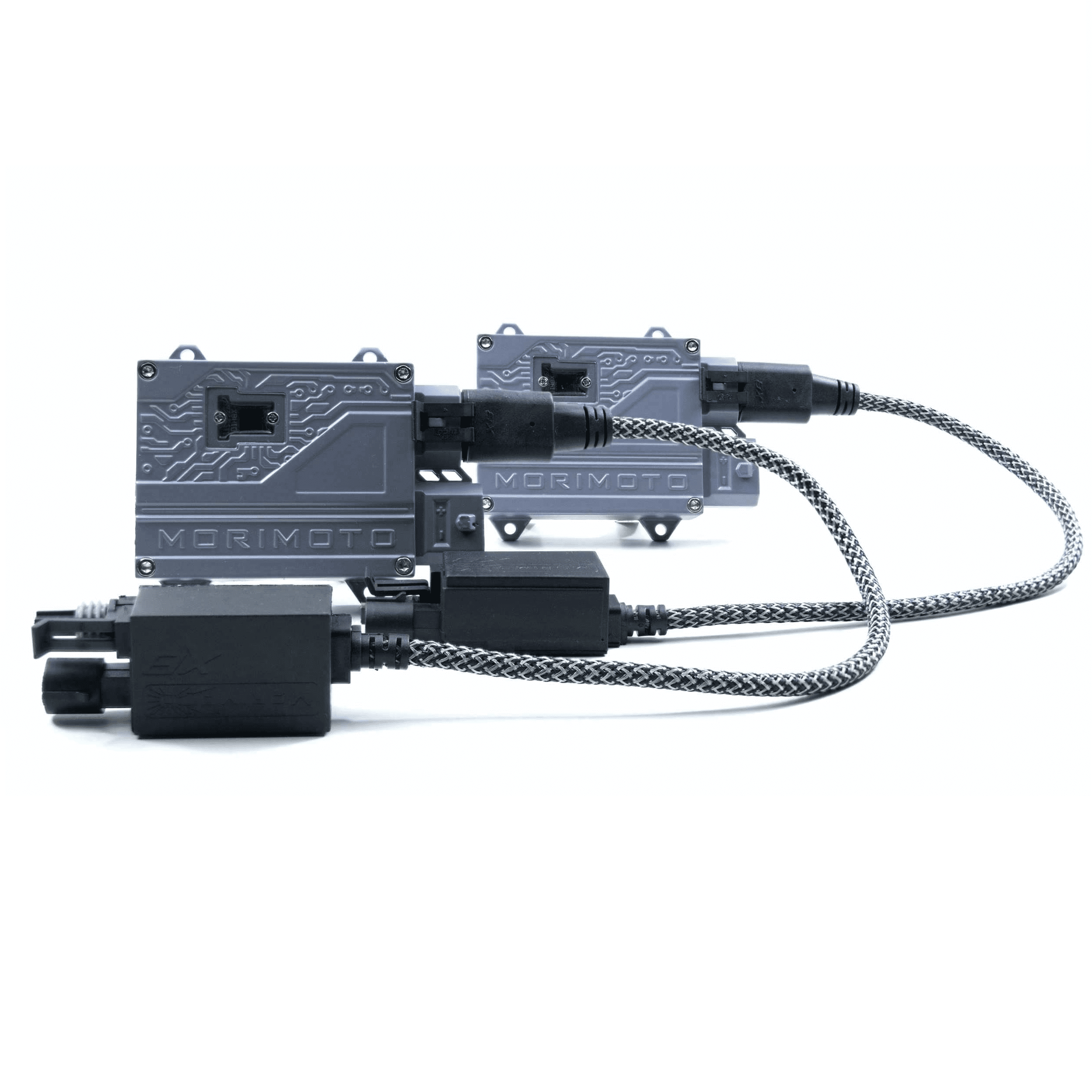

AMP: Morimoto XB55 50 Watt HID Ballast

From: $60.00






Upgrade to a Carbon Fiber Ballast Mounting Bracket? – optional

Limited edition Morimoto bracket made from real carbon fiber, it is not only extremely light weight, looks good, but also have a very high tensile strength.


Product Description

Trusted: With distribution exceeding 150,000 units over the last four years; more enthusiasts chose Morimoto over any other aftermarket ballast. Easily filling the shoes of the 5Five units that they replace, the brand new XB55 ballasts excel in every way.


Inspired: Packaged into a more retrofit-friendly design, The new XB’s feature countless elements derived from the most popular OEM benchmarks. As good as they are; even arrogant retrofitters may start second-guessing those bulky, power hungry, exposed-to-the-elements, OE ballasts.


Protected: Their die-cast aluminum shell houses a 100% potted circuit board; eliminating any chance of moisture damage. The AMP SuperSeal three-pin connector from TE Connectivity between the igniter and the ballast ensures the safety of this crucial output.


Compact: Slim 17mm body will mount almost anywhere with their extremely functional and attractive eight-position mounting brackets.


Versatile: If you’re like many of us retrofitters: the setup is always changing and now your ballasts can keep up! Since the igniter cord can be unplugged from the ballast, you can easily change from AMP to D2S or Vice Versa. (without the use of unreliable adapters, that is) Likewise, if an igniter does happen to go bad, it can easily be replaced.


Fast, Friendly and Efficient: Power hungry ballasts never work well with tricky CanBus systems, but the new XB55 ballast consume < 5A on ignition without compromising their reasonably quick warm up speed. That’s much less than Denso, Mitsubishi, FastBright, and the old Morimoto too, which makes their ability to reach full intensity a more efficient process.


Quiet: Like all modern OEM D1 and D2 ballasts: the XB has relocated igniters far closer to the HID bulb. The lack of high voltage transmitted through wiring drastically reduces EMI/RFI (radio interference). Total system reliability is also improved by shielding the main circuit board from the static produced by these high voltage bursts on start up.


Reliable and Smart: The XB55 ballasts are designed to last for 2500 hours and there’s not much that will stand in their way. The matured DSP 2.0 software recognizes outside system faults such as a loose high voltage connection, and after one misfire will cut power rather than potentially self-destruct.


Functional Works of Art: Designed by Artur Saakyan in California, the Morimoto XB55 Ballasts feature a gunmetal paint job. Laser etched graphics. Stainless Steel hardware. Color coordinated mounting bracket and TechFlex braided insulation.


What’s Included

  • Ballast: 1x Morimoto XB55 (Sold Individually)
  • Igniter: Morimoto XB AMP
  • Bracket: Eight Point Painted Steel
  • Warranty: Two Years


  • Bulbs: H1, H3, H4, H7, H8, H9, H10, H13, H16, 9140, 9145, 9005, 9006, 9007
  • Input: Industry Standard “9006” Plug
  • Output: AMP


  • Wattage Output: 50W
  • Ignition Voltage: 23KV
  • Input Voltage: AC 9-32V
  • Input Current: < 5A
  • Open Circuit: Protected (< 1s)
  • Short Circuit: Protected (< 1s)
  • Climate Range: -40C to +85C
  • Rated Lifetime: 2500hours (6-10 years)


  • Length (mm): 82
  • Width (mm): 68
  • Thickness (mm): 17
  • Output Length (cm): 35

Additional Information

Weight 0.01 lbs
Shipping Dimensions 5 x 3 x 2 in



2 Years


Ships Same Day


50 Watt




Morimoto XB55 Computer


Morimoto XB Igniter (AMP)
